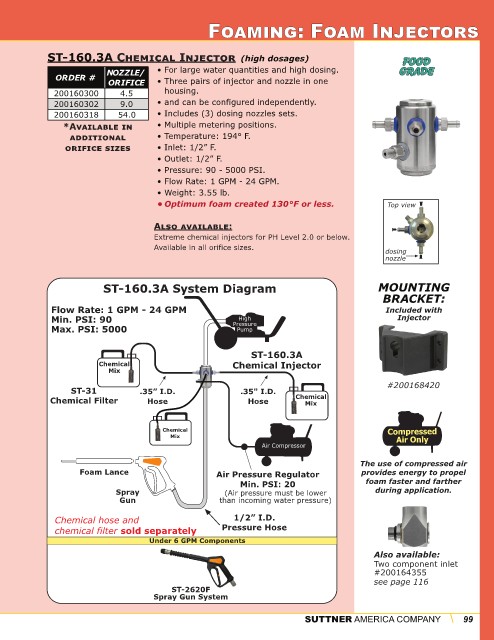

Page 99 - Suttner Product Catalog - 2025-2026

FOAMING: FOAM INJECTORS

ST-160.3A CHEMICAL INJECTOR (high dosages) Food
Food
Grade
NOZZLE/ • For large water quantities and high dosing. Grade
ORDER #
ORIFICE • Three pairs of injector and nozzle in one
200160300 4.5 housing.
200160302 9.0 • and can be configured independently.
200160318 54.0 • Includes (3) dosing nozzles sets.
*AVAILABLE IN • Multiple metering positions.
ADDITIONAL • Temperature: 194° F.
ORIFICE SIZES • Inlet: 1/2” F.
• Outlet: 1/2” F.
• Pressure: 90 - 5000 PSI.
• Flow Rate: 1 GPM - 24 GPM.
• Weight: 3.55 lb.
• Optimum foam created 130°F or less. Top view

ALSO AVAILABLE:
Extreme chemical injectors for PH Level 2.0 or below.
Available in all orifice sizes.
dosing
nozzle

ST-160.3A System Diagram MOUNTING
BRACKET:
Flow Rate: 1 GPM - 24 GPM Included with
Min. PSI: 90 Pressure Injector
High
Max. PSI: 5000 Pump

ST-160.3A
Chemical Chemical Injector
Mix
#200168420
ST-31 .35” I.D. .35" I.D.
Chemical Filter Hose Hose Chemical
Mix

Chemical
Mix
Air Compressor

The use of compressed air
Foam Lance Air Pressure Regulator provides energy to propel
Min. PSI: 20 foam faster and farther
Spray (Air pressure must be lower during application.
Gun than incoming water pressure)

Chemical hose and 1/2” I.D.
chemical filter sold separately Pressure Hose
Under 6 GPM Components
Also available:
Two component inlet
#200164355
see page 116
ST-2620F
Spray Gun System
/
