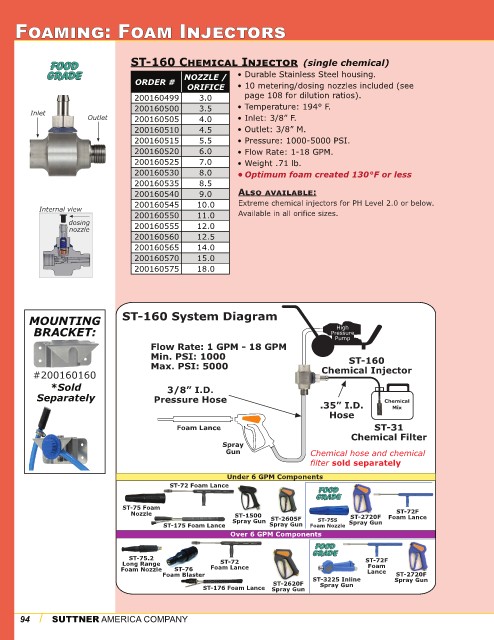

Page 94 - Suttner Product Catalog - 2023

Foam Injectors

ST-160 CHEMICAL INJECTOR (single chemical)

NOZZLE / • Durable Stainless Steel housing
ORDER #
ORIFICE • 10 metering/dosing nozzles included
200160499 3.0 (see page 108 for dilution ratios)
200160500 3.5 • Temperature: 194° F
Inlet
Outlet 200160505 4.0 • Inlet: 3/8” F
200160510 4.5 • Outlet: 3/8” M
200160515 5.5 • Presure: 1000-5000 PSI
200160520 6.0 • Flow Rate: 1-18 GPM
200160525 7.0 • Weight .71 lb
200160530 8.0 • Optimum foam created 130°F or less
200160535 8.5 * Also available: Extreme chemical
200160540 9.0 injectors for PH Level 2.0 or below
200160545 10.0
Internal view Available in all orifice sizes
200160550 11.0
dosing 200160555 12.0
nozzle
200160560 12.5
200160565 14.0
200160570 15.0
200160575 18.0

MOUNTING ST-160 System Diagram
High
BRACKET: Pressure
Pump
Flow Rate: 1 GPM - 18 GPM
Min. PSI: 1000 ST-160
Max. PSI: 5000 Chemical Injector
#200160160
*Sold 3/8” I.D.
Separately Pressure Hose Chemical
.35” I.D. Mix
Hose
Foam Lance ST-31
Chemical Filter
Spray
Gun Chemical hose and chemical
filter sold separately

Under 6 GPM Components
ST-72 Foam Lance

ST-75 Foam
ST-72F
Nozzle ST-1500 ST-2720F Foam Lance
Spray Gun ST-2605F ST-75S Spray Gun
ST-175 Foam Lance Spray Gun Foam Nozzle
Over 6 GPM Components
ST-75.2 ST-72F
Long Range ST-72 Foam
Foam Nozzle ST-76 Foam Lance Lance
Foam Blaster ST-2720F
ST-2620F ST-3225 Inline Spray Gun
Spray Gun
ST-176 Foam Lance Spray Gun
