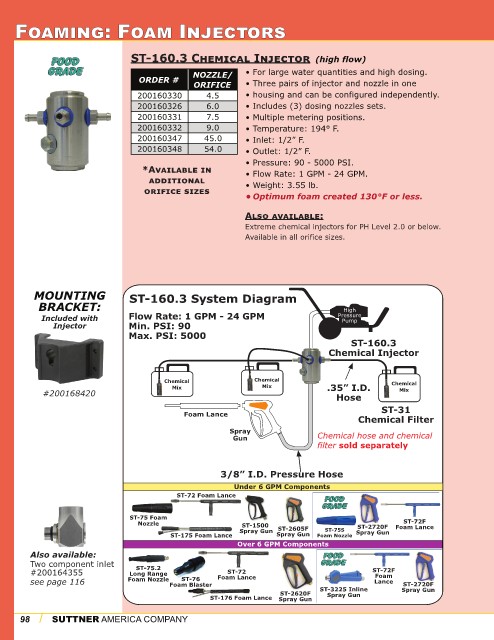

Page 98 - Suttner Product Catalog - 2023

Foaming Injectors

ST-160.3 CHEMICAL INJECTOR (high flow)
• For large water quantities and high dosing
NOZZLE/
ORDER # • Three pairs of injector and nozzle in one
ORIFICE
200160326 6.0 housing and can be configured independently
200160330 4.5 • Includes (3) dosing nozzles sets
200160331 7.5 • Multiple metering positions
200160332 9.0 • Temperature: 194° F
200160347 45.0 • Inlet: 1/2” F
200160348 54.0 • Outlet: 1/2” F
• Pressure: 90 - 5000 PSI
* Available in • Flow Rate: 1 GPM - 24 GPM
additional
orifice sizes • Weight: 3.55 lb
• Optimum foam created 130°F or less

* Also available: Extreme chemical
injectors for PH Level 2.0 or below
Available in all orifice sizes

MOUNTING ST-160.3 System Diagram
BRACKET: High
Included with Flow Rate: 1 GPM - 24 GPM Pressure
Pump
Injector Min. PSI: 90
Max. PSI: 5000
ST-160.3
Chemical Injector

Chemical Chemical Chemical
Mix Mix .35” I.D.
#200168420 Hose Mix
ST-31
Foam Lance
Chemical Filter
Spray
Gun Chemical hose and chemical
filter sold separately

3/8” I.D. Pressure Hose
Under 6 GPM Components
ST-72 Foam Lance

ST-75 Foam
ST-72F
Nozzle ST-1500 ST-2720F Foam Lance
Spray Gun ST-2605F ST-75S Spray Gun
ST-175 Foam Lance Spray Gun Foam Nozzle
Over 6 GPM Components
Also available:
Two component inlet ST-75.2
#200164355 Long Range ST-72 ST-72F
Foam
ST-76
see page 116 Foam Nozzle Foam Blaster Foam Lance Lance ST-2720F
ST-2620F ST-3225 Inline Spray Gun
Spray Gun
ST-176 Foam Lance Spray Gun
98 SUTTNER AMERICA COMPANY
