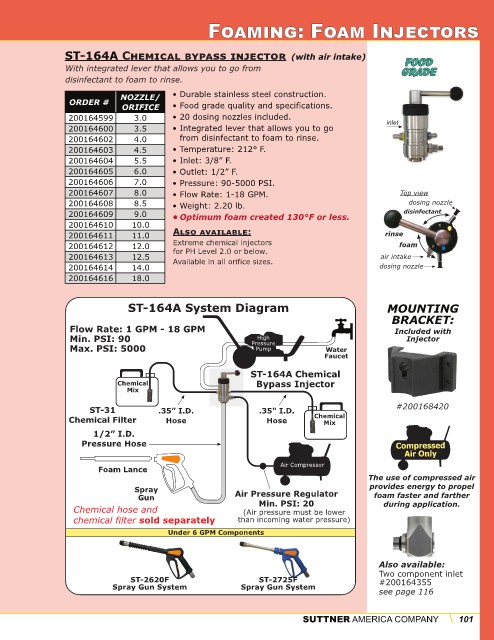

Page 101 - Suttner Product Catalog - 2023

Foaming Injectors

ST-164A CHEMICAL BYPASS INJECTOR (with air intake)
With integrated lever that allows you to go from disinfectant to foam to rinse
NOZZLE / • Durable stainless steel construction
ORDER # •
ORIFICE Food grade quality and specifications
200164599 3.0 • 20 dosing nozzles included
200164600 3.5 • Integrated lever that allows you to go inlet
200164602 4.0 from disinfectant to foam to rinse
200164603 4.5 • Temperature: 212° F
200164604 5.5 • Inlet: 3/8” F
200164605 6.0 • Outlet: 1/2” F
200164606 7.0 • Pressure: 90-5000 PSI
200164607 8.0 • Flow Rate: 1-18 GPM
200164608 8.5 • Weight: 2.20 lb Top view
200164609 9.0 • Optimum foam created 130°F or less dosing nozzle
200164610 10.0 * Also available: Extreme chemical disinfectant
200164611 11.0 injectors for PH Level 2.0 or below
200164612 12.0 rinse
200164613 12.5 Available in all orifice sizes foam
200164616 18.0 air intake
dosing nozzle

ST-164A System Diagram MOUNTING
BRACKET:
Flow Rate: 1 GPM - 18 GPM Included with
Min. PSI: 90 High Injector
Max. PSI: 5000 Pressure Water
Pump
Faucet
ST-164A Chemical
Chemical Bypass Injector
Mix

ST-31 .35” I.D. .35" I.D. #200168420
Chemical Filter Hose Hose Chemical
Mix
1/2” I.D.
Pressure Hose

Foam Lance Air Compressor
The use of compressed air
Spray Air Pressure Regulator provides energy to propel
Gun foam faster and farther
Min. PSI: 20
Chemical hose and (Air pressure must be lower during application
chemical filter sold separately than incoming water pressure)
Under 6 GPM Components

Also available:
Two component inlet
ST-2620F ST-2725F #200164355
Spray Gun System Spray Gun System
see page 116
