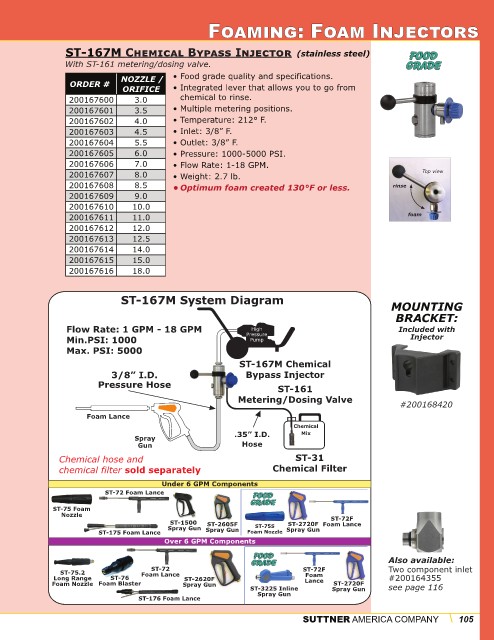

Page 105 - Suttner Product Catalog - 2025-2026

FOAMING: FOAM INJECTORS

ST-167M CHEMICAL BYPASS INJECTOR (stainless steel) Food
Food
ST-167 CHEMICAL BYPASS INJECTOR (stainless steel) With ST-161 metering/dosing valve. Grade
Grade
NOZZLE / • Food grade quality and specifications.
ORDER #
ORIFICE • Integrated lever that allows you to go from
200167600 3.0 chemical to rinse.
200167601 3.5 • Multiple metering positions.
200167602 4.0 • Temperature: 212° F.
200167603 4.5 • Inlet: 3/8” F.
200167604 5.5 • Outlet: 3/8” F.
200167605 6.0 • Pressure: 1000-5000 PSI.
200167606 7.0 • Flow Rate: 1-18 GPM.
200167607 8.0 • Weight: 2.7 lb. Top view
200167608 8.5 • Optimum foam created 130°F or less. rinse
200167609 9.0
200167610 10.0
200167611 11.0 foam
200167612 12.0
200167613 12.5
200167614 14.0
200167615 15.0
200167616 18.0

ST-167M System Diagram
MOUNTING
BRACKET:
Flow Rate: 1 GPM - 18 GPM High Included with
Min.PSI: 1000 Pressure Injector
Pump
Max. PSI: 5000
ST-167M Chemical
3/8” I.D. Bypass Injector
Pressure Hose ST-161

Metering/Dosing Valve #200168420

Foam Lance
Chemical
.35” I.D. Mix
Spray
Gun Hose
Chemical hose and ST-31
chemical filter sold separately Chemical Filter
Under 6 GPM Components FOOD GRADE
ST-72 Foam Lance Food
Food
Grade
Grade
ST-75 Foam
Nozzle ST-72F
ST-1500 ST-2605F ST-2720F Foam Lance
Spray Gun Spray Gun ST-75S Spray Gun
ST-175 Foam Lance Foam Nozzle
Over 6 GPM Components
Food
Food
Grade
Grade Also available:
ST-72 ST-72F Two component inlet
ST-75.2 Foam Lance Foam
Long Range ST-76 ST-2620F Lance #200164355
Foam Nozzle Foam Blaster Spray Gun ST-2720F
ST-3225 Inline Spray Gun see page 116
ST-176 Foam Lance Spray Gun
/
