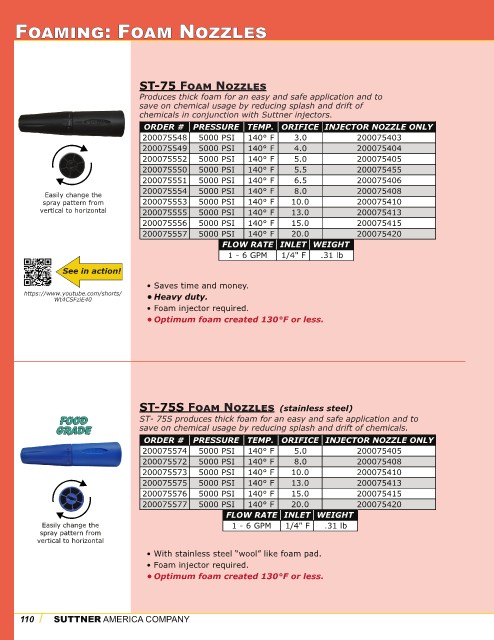

Page 110 - Suttner Product Catalog - 2023

Foam Nozzles

ST-75 FOAM NOZZLE
Produces thick foam for an easy and safe application and to
save on chemical usage by reducing splash and drift of
chemicals in conjunction with Suttner injectors

ORDER # PRESSURE TEMP. INLET ORIFICE WEIGHT
200075548 5000 PSI 212° F 1/4" F 3.0 .31 lb
200075549 5000 PSI 212° F 1/4" F 4.0 .31 lb
200075552 5000 PSI 212° F 1/4" F 5.0 .31 lb
Easily change the 200075550 5000 PSI 212° F 1/4" F 5.5 .31 lb
spray pattern from 200075551 5000 PSI 212° F 1/4" F 6.5 .31 lb
vertical to horizontal
200075547 5000 PSI 212° F 1/4" F 7.5 .31 lb
200075554 5000 PSI 212° F 1/4" F 8.0 .31 lb
200075553 5000 PSI 212° F 1/4" F 10.0 .31 lb
200075555 5000 PSI 212° F 1/4" F 13.0 .31 lb
200075556 5000 PSI 212° F 1/4" F 15.0 .31 lb
200075557 5000 PSI 212° F 1/4" F 20.0 .31 lb

• Saves time and money Scan QR code to
• Flow Rate: 1 - 6 GPM watch a short demo
• Foam injector required
• Optimum foam created 130°F or less https://www.youtube.com/watch?
v=KJxLKSWlTcw

ST-75S FOAM NOZZLE (stainless steel)
ST- 75S produces thick foam for an easy and safe application and to
save on chemical usage by reducing splash and drift of chemicals

ORDER # PRESSURE TEMP. INLET ORIFICE WEIGHT
200075574 4000 PSI 212° F 1/4" F 5.0 .31 lb
200075572 4000 PSI 212° F 1/4" F 8.0 .31 lb
200075573 4000 PSI 212° F 1/4" F 10.0 .31 lb
200075575 4000 PSI 212° F 1/4" F 13.0 .31 lb
200075576 4000 PSI 212° F 1/4" F 15.0 .31 lb
200075577 4000 PSI 212° F 1/4" F 20.0 .31 lb
Easily change the
spray pattern from
vertical to horizontal • With stainless steel “wool” like foam pad
• Foam injector required

FOAM NOZZLE
NEW! ORDER # PRESSURE TEMP. ORIFICE INLET LENGTH WEIGHT
SIZE
203100910 700 PSI 140° F 200.0 1/4" M 3.50 in. .80 lb

• Spraying Pattern: 50°
• Made of polypropylene
• Use with Suttner’s ST-510 Spray Gun
• Private Label Availability
• Also available in red, blue, green or yellow

Front view: Equipped
Shown here on ST-510; with a foam strainer
products sold separately

110 SUTTNER AMERICA COMPANY
