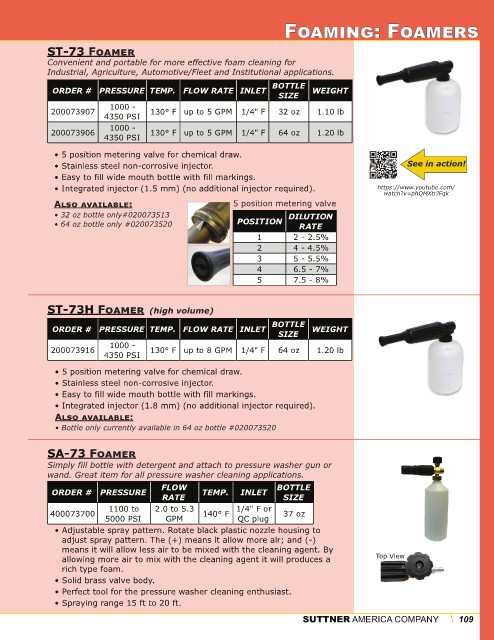

Page 109 - Suttner Product Catalog - 2023

Foamers

ST-73 FOAMER
Convenient and portable for more effective foam cleaning for
Industrial, Agriculture, Automotive/Fleet and Institutional applications
BOTTLE
ORDER # PRESSURE TEMP. FLOW RATE INLET WEIGHT
SIZE
1000 -
200073907 130° F up to 5 GPM 1/4" F 32 oz 1.10 lb
4350 PSI
1000 -
200073906 130° F up to 5 GPM 1/4" F 64 oz 1.20 lb
4350 PSI
• 5 position metering valve for chemical draw
• Stainless steel non-corrosive injector
• Easy to fill wide mouth bottle with fill markings
• Integrated injector (1.5 mm) (no additional injector required)
ALSO AVAILABLE:
• 32 oz bottle only#020073513 Scan QR code to
watch a short demo
• 64 oz bottle only #020073520
https://www.youtube.com/
watch?v=phQMXtrJFqk

5 position metering valve
POSITION DILUTION RATE
1 2 - 2.5%
2 4 - 4.5%
3 5 - 5.5%
4 6.5 - 7%
5 7.5 - 8%

ST-73H FOAMER (high volume)
BOTTLE
ORDER # PRESSURE TEMP. FLOW RATE INLET WEIGHT
SIZE
1000 -
200073916 130° F up to 8 GPM 1/4" F 64 oz 1.20 lb
4350 PSI
• 5 position metering valve for chemical draw
• Stainless steel non-corrosive injector
• Easy to fill wide mouth bottle with fill markings
• Integrated injector (1.8 mm) (no additional injector required)
ALSO AVAILABLE:
• Bottle only currently available in 64 oz bottle #020073520

SUTTNER AMERICA COMPANY 109
