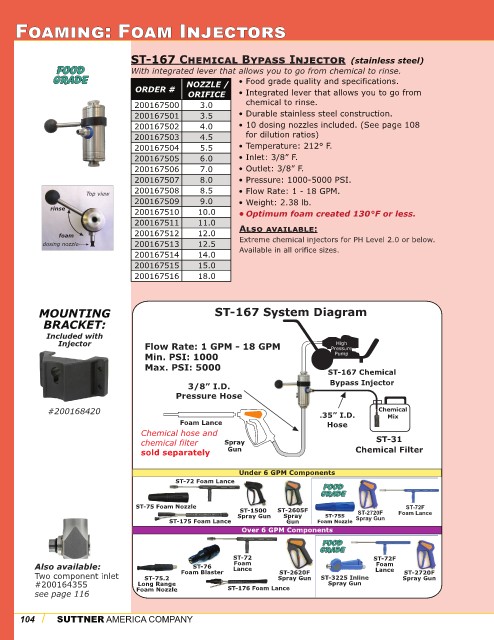

Page 104 - Suttner Product Catalog - 2025-2026

FOAMING: FOAM INJECTORS

ST-167 CHEMICAL BYPASS INJECTOR (stainless steel)
Food
Food With integrated lever that allows you to go from chemical to rinse.
Grade NOZZLE / • Food grade quality and specifications.
Grade
ORDER #
ORIFICE • Integrated lever that allows you to go from
200167500 3.0 chemical to rinse.
200167501 3.5 • Durable stainless steel construction.
200167502 4.0 • 10 dosing nozzles included. (See page 108
200167503 4.5 for dilution ratios)
200167504 5.5 • Temperature: 212° F.
200167505 6.0 • Inlet: 3/8” F.
200167506 7.0 • Outlet: 3/8” F.
200167507 8.0 • Pressure: 1000-5000 PSI.
200167508 8.5 • Flow Rate: 1 - 18 GPM.
Top view
200167509 9.0 • Weight: 2.38 lb.
rinse
200167510 10.0 • Optimum foam created 130°F or less.
200167511 11.0 ALSO AVAILABLE:
foam 200167512 12.0 Extreme chemical injectors for PH Level 2.0 or below.
dosing nozzle 200167513 12.5
200167514 14.0 Available in all orifice sizes.
200167515 15.0
200167516 18.0

MOUNTING ST-167 System Diagram
BRACKET:
Included with
Injector Flow Rate: 1 GPM - 18 GPM Pressure
High
Min. PSI: 1000 Pump
Max. PSI: 5000 ST-167 Chemical

3/8” I.D. Bypass Injector
Pressure Hose

#200168420 .35” I.D. Chemical
Mix
Foam Lance Hose
Chemical hose and
chemical filter Spray ST-31
sold separately Gun Chemical Filter

Under 6 GPM Components
ST-72 Foam Lance
Food
Food
Grade
Grade
ST-75 Foam Nozzle ST-72F
ST-1500 ST-2605F ST-2720F Foam Lance
Spray Gun Spray ST-75S Spray Gun
ST-175 Foam Lance Gun Foam Nozzle
Over 6 GPM Components
Food
Food
Grade
Grade
ST-72 ST-72F
Foam
Foam
Also available: ST-76 Lance Lance
ST-2620F
ST-2720F
Two component inlet ST-75.2 Foam Blaster Spray Gun ST-3225 Inline Spray Gun
#200164355 Long Range ST-176 Foam Lance Spray Gun
see page 116 Foam Nozzle
/
