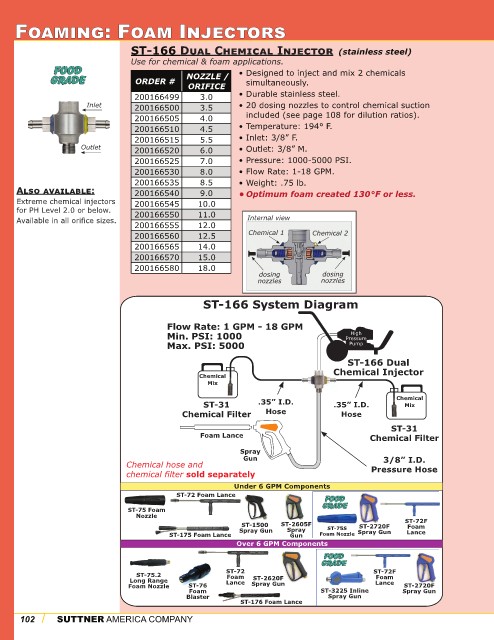

Page 102 - Suttner Product Catalog - 2023

Foaming Injectors

ST-166 DUAL CHEMICAL INJECTOR (stainless steel)
Use for chemical & foam applications
NOZZLE / • Designed to inject and mix 2
Inlet ORDER # ORIFICE chemicals simultaneously
200166499 3.0 • Durable stainless steel
200166500 3.5 • 20 dosing nozzles to control
200166505 4.0 chemical suction included
Outlet (see page 108 for dilution ratios)
200166510 4.5
200166515 5.5 • Temperature: 194° F
200166520 6.0 • Inlet: 3/8” F
200166525 7.0 • Outlet: 3/8” M
Internal view
200166530 8.0 • Pressure: 1000-5000 PSI
Chemical 1 Chemical 2 200166535 8.5 • Flow Rate: 1-18 GPM
200166540 9.0 • Weight: .75 lb
200166545 10.0 • Optimum foam created 130°F or less
200166550 11.0
dosing dosing * Also available: Extreme chemical
nozzles nozzles 200166555 12.0 injectors for PH Level 2.0 or below
200166560 12.5
200166565 14.0 Available in all orifice sizes
200166570 15.0
200166580 18.0
ST-166 System Diagram

Flow Rate: 1 GPM - 18 GPM
Min. PSI: 1000 Pressure
High
High
Pressure
Max. PSI: 5000 Pump
Pump
ST-166 Dual
Chemical Injector
Chemical
Mix
ST-31 .35” I.D. .35” I.D. Chemical
Mix
Chemical Filter Hose Hose
ST-31
Foam Lance Chemical Filter

Spray
Gun 3/8” I.D.
Chemical hose and Pressure Hose
chemical filter sold separately
Under 6 GPM Components FOOD GRADE
ST-72 Foam Lance
ST-75 Foam
Nozzle
ST-1500 ST-2605F ST-2720F ST-72F
Foam
Spray Gun Spray ST-75S Spray Gun Lance
ST-175 Foam Lance Gun Foam Nozzle
Over 6 GPM Components FOOD GRADE

ST-72 ST-72F
ST-75.2 Foam Foam
Long Range Lance ST-2620F Lance
Foam Nozzle ST-76 Spray Gun ST-2720F
Foam ST-3225 Inline Spray Gun
Blaster Spray Gun
ST-176 Foam Lance

102 SUTTNER AMERICA COMPANY
