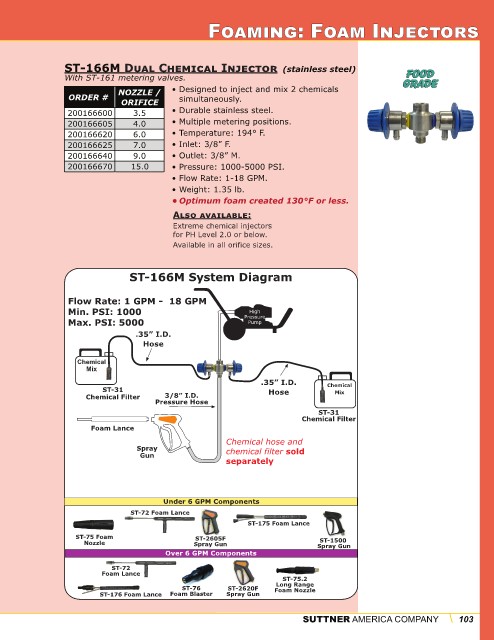

Page 103 - Suttner Product Catalog - 2023

Foaming Injectors

ST-166 DUAL CHEMICAL INJECTOR (stainless steel)
ST-166M DUAL CHEMICAL INJECTOR (stainless steel)
with ST-161 metering valves
NOZZLE / • Designed to inject and mix 2
ORDER # chemicals simultaneously
ORIFICE
200166600 3.5 • Durable stainless steel
200166605 4.0 • Multiple metering positions
200166620 6.0 • Temperature: 194° F
200166625 7.0 • Inlet: 3/8” F
200166640 9.0 • Outlet: 3/8” M
200166670 15.0 • Pressure: 1000-5000 PSI
• Flow Rate: 1-18 GPM
• Weight: 1.35 lb
• Optimum foam created 130°F or less
* Also available: Extreme chemical
injectors for PH Level 2.0 or below
Available in all orifice sizes

ST-166M System Diagram

Flow Rate: 1 GPM - 18 GPM
High
Min. PSI: 1000 Pressure
Max. PSI: 5000 Pump
.35” I.D.
Hose
Chemical
Mix
.35” I.D. Chemical
ST-31 Hose Mix
Chemical Filter 3/8” I.D.
Pressure Hose
ST-31
Chemical Filter
Foam Lance
Chemical hose and
chemical filter sold Spray
separately Gun

Under 6 GPM Components

ST-72 Foam Lance ST-175 Foam Lance
FOOD GRADE
ST-75 Foam ST-2605F
ST-1500
Nozzle Spray Gun Spray Gun
Over 6 GPM Components
ST-72 ST-176 Foam Lance
Foam
ST-75.2 Lance
Long Range ST-76 ST-2620F
Foam Nozzle Foam Blaster Spray Gun
