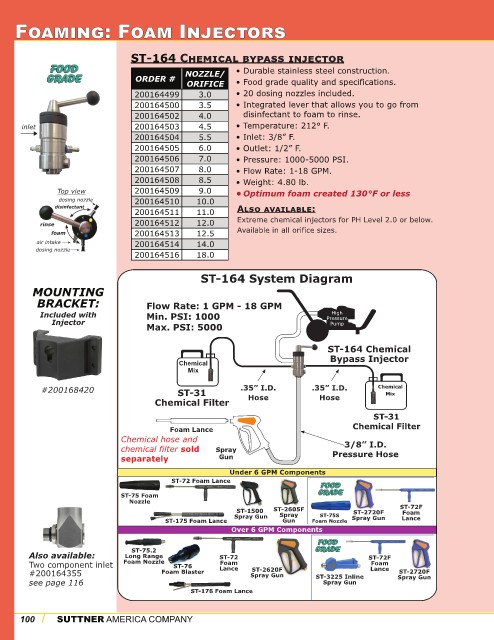

Foaming Injectors

ST-164 CHEMICAL BYPASS INJECTOR

NOZZLE / • Durable stainless steel construction
ORDER # • Food grade quality and specifications
ORIFICE
200164499 3.0 • 20 dosing nozzles included
200164500 3.5 • Integrated lever that allows you to go
inlet 200164502 4.0 from disinfectant to foam to rinse
200164503 4.5 • Temperature: 212° F
200164504 5.5 • Inlet: 3/8” F
200164505 6.0 • Outlet: 1/2” F
200164506 7.0 • Pressure: 1000-5000 PSI
200164507 8.0 • Flow Rate: 1-18 GPM
Top view 200164508 8.5 • Weight: 4.80 lb
dosing nozzle
disinfectant 200164509 9.0 • Optimum foam created 130°F or less
200164510 10.0 * Also available: Extreme chemical
rinse 200164511 11.0
foam 200164512 12.0 injectors for PH Level 2.0 or below
air intake
dosing nozzle 200164513 12.5 Available in all orifice sizes
200164516 18.0

MOUNTING ST-164 System Diagram
BRACKET:
Included with
Injector Flow Rate: 1 GPM - 18 GPM
High
Min. PSI: 1000 Pressure
Max. PSI: 5000 Pump

ST-164 Chemical
Bypass Injector
Chemical
Mix
#200168420
ST-31 .35” I.D. .35” I.D. Chemical
Mix
Chemical Filter Hose Hose
ST-31
Chemical Filter
Foam Lance
Chemical hose and
chemical filter sold Spray 3/8” I.D.
separately Gun Pressure Hose

Under 6 GPM Components
ST-72 Foam Lance
ST-75 Foam
Nozzle
ST-1500 ST-2605F ST-2720F ST-72F
Foam
Spray Gun Spray ST-75S Spray Gun Lance
ST-175 Foam Lance Gun Foam Nozzle
Over 6 GPM Components FOOD GRADE
ST-75.2
Also available: Long Range ST-72 ST-72F
Foam
Foam
Two component inlet Foam Nozzle ST-76 Lance Lance
ST-2620F
ST-2720F
#200164355 Foam Blaster Spray Gun ST-3225 Inline Spray Gun
see page 116 Spray Gun
ST-176 Foam Lance
