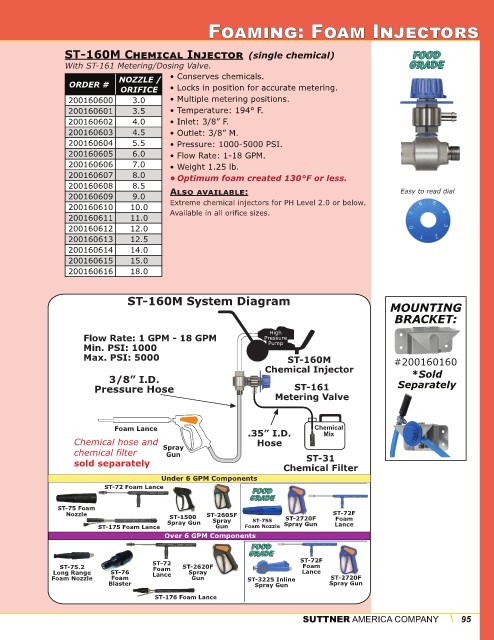

Page 95 - Suttner Product Catalog - 2023

Foam Injectors

ST-160M CHEMICAL INJECTOR (single chemical)
With ST-161 Metering/Dosing Valve
NOZZLE / • Conserves chemicals
ORDER # • Locks in position for accurate metering
ORIFICE
200160600 3.0 • Multiple metering positions
200160601 3.5 • Temperature: 194° F
200160602 4.0 • Inlet: 3/8” F
200160603 4.5 • Outlet: 3/8” M
200160604 5.5 • Presure: 1000-5000 PSI
200160605 6.0 • Flow Rate: 1-18 GPM
200160606 7.0 • Weight 1.25 lb
200160607 8.0 • Optimum foam created 130°F or less
200160608 8.5 * Also available: Extreme chemical Easy to read dial
200160609 9.0 injectors for PH Level 2.0 or below
200160610 10.0
200160611 11.0 Available in all orifice sizes
200160612 12.0
200160613 12.5
200160614 14.0
200160615 15.0
200160616 18.0

ST-160M System Diagram
MOUNTING
BRACKET:
High
Flow Rate: 1 GPM - 18 GPM Pressure
Min. PSI: 1000 Pump
Max. PSI: 5000 ST-160M #200160160
Chemical Injector *Sold
3/8” I.D.
Pressure Hose ST-161 Separately
Metering Valve

Foam Lance .35” I.D. Chemical
Mix
Chemical hose and Spray Hose
chemical filter Gun
ST-31
sold separately Chemical Filter
FOOD GRADE
Under 6 GPM Components FOOD GRADE
ST-72 Foam Lance

ST-75 Foam
Nozzle ST-1500 ST-2605F ST-2720F ST-72F
Foam
Spray Gun Spray ST-75S Spray Gun Lance
ST-175 Foam Lance Gun Foam Nozzle
Over 6 GPM Components FOOD GRADE

ST-72F
ST-72
ST-75.2 Foam ST-2620F Foam
Long Range ST-76 Lance Spray Lance
Foam Nozzle Foam Gun ST-3225 Inline ST-2720F
Blaster Spray Gun Spray Gun
ST-176 Foam Lance
