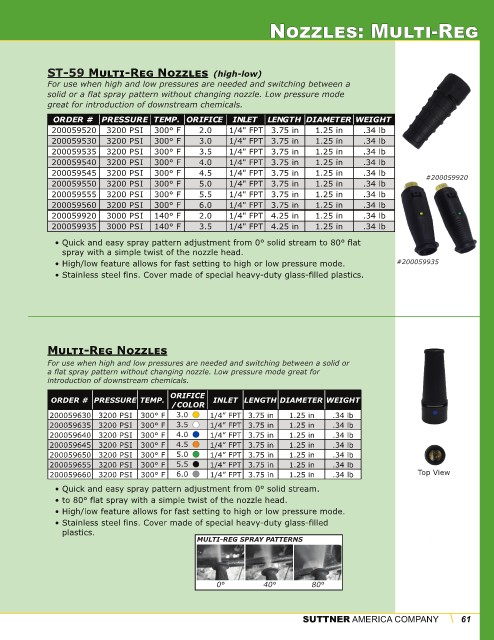

Page 61 - Suttner Product Catalog - 2023

Multi-Reg Nozzles

MULTI-REG NOZZLES
For use when high and low pressures are needed and switching between a solid or
a flat spray pattern without changing nozzle. Low pressure mode great for
introduction of downstream chemicals.
TEMP.
ORIFICE
ORDER # PRESSURE TEMP. INLET LENGTH DIAMETER WEIGHT
/COLOR
200059630 3200 PSI 300° F 3.0 1/4” FPT 3.75 in 1.25 in .34 lb
200059635 3200 PSI 300° F 3.5 1/4” FPT 3.75 in 1.25 in .34 lb
200059640 3200 PSI 300° F 4.0 1/4” FPT 3.75 in 1.25 in .34 lb
200059645 3200 PSI 300° F 4.5 1/4” FPT 3.75 in 1.25 in .34 lb
200059650 3200 PSI 300° F 5.0 1/4” FPT 3.75 in 1.25 in .34 lb
200059655 3200 PSI 300° F 5.5 1/4” FPT 3.75 in 1.25 in .34 lb Top View
200059660 3200 PSI 300° F 6.0 1/4” FPT 3.75 in 1.25 in .34 lb
• Quick and easy spray pattern adjustment from 0° solid stream
to 80° flat spray with a simple twist of the nozzle head
• High/low feature allows for fast setting to high or low pressure mode
• Stainless steel fins. Cover made of special heavy-duty
glass-filled plastics

MULTI-REG NOZZLES (high-low)
For use when high and low pressures are needed and switching between a
solid or a flat spray pattern without changing nozzle. Low pressure mode
great for introduction of downstream chemicals.
ORDER # PRESSURE TEMP. ORIFICE INLET LENGTH DIAMETER WEIGHT
200059920 3000 PSI 140° F 2.0 1/4” FPT 4.25 in 1.25 in .34 lb
200059935 3000 PSI 140° F 3.5 1/4” FPT 4.25 in 1.25 in .34 lb
• Quick and easy spray pattern adjustment from 0° solid stream
to 80° flat spray with a simple twist of the nozzle head
• High/low feature allows for fast setting to high or low pressure mode
• Stainless steel fins. Cover made of special heavy-duty
glass-filled plastics
MULTI-REG SPRAY PATTERNS

0° 40° 80°

SUTTNER AMERICA COMPANY 61
