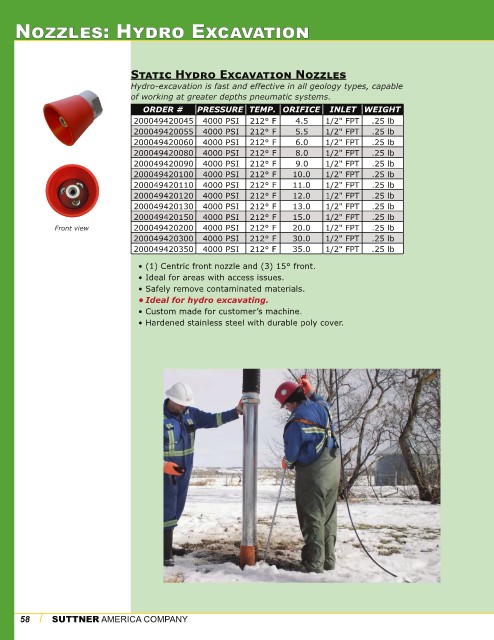

Page 58 - Suttner Product Catalog - 2023

Hydro Excavation Nozzles

STATIC HYDRO EXCAVATION NOZZLES
Hydro-excavation is fast and effective in all geology types, capable
of working at greater depths pneumatic systems
ORDER # PRESSURE TEMP. ORIFICE INLET WEIGHT
200049420045 4000 PSI 212° F 4.5 1/2" FPT .25 lb
200049420055 4000 PSI 212° F 5.5 1/2" FPT .25 lb
200049420060 4000 PSI 212° F 6.0 1/2" FPT .25 lb
200049420080 4000 PSI 212° F 8.0 1/2" FPT .25 lb
200049420100 4000 PSI 212° F 10.0 1/2" FPT .25 lb
200049420110 4000 PSI 212° F 11.0 1/2" FPT .25 lb
200049420120 4000 PSI 212° F 12.0 1/2" FPT .25 lb
200049420130 4000 PSI 212° F 13.0 1/2" FPT .25 lb
200049420150 4000 PSI 212° F 15.0 1/2" FPT .25 lb
Front view
200049420200 4000 PSI 212° F 20.0 1/2" FPT .25 lb
200049420300 4000 PSI 212° F 30.0 1/2" FPT .25 lb
200049420350 4000 PSI 212° F 35.0 1/2" FPT .25 lb

• (1) Centric front nozzle and (3) 15° front
• Ideal for areas with access issues
• Safely remove contaminated materials
• Ideal for hydro excavating
• Custom made for customer’s machine
• Hardened stainless steel with durable poly cover
