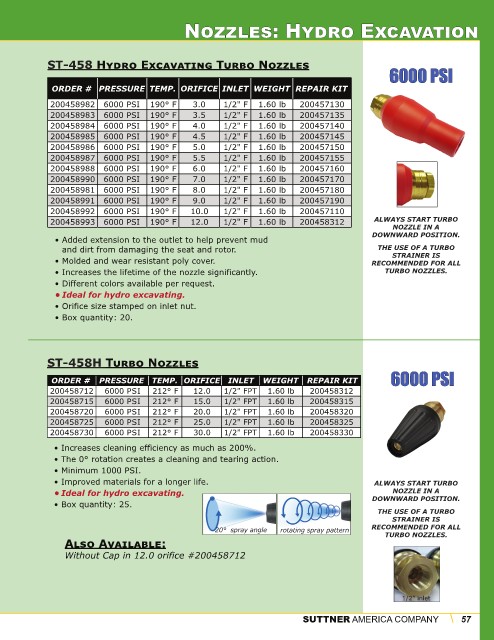

Page 57 - Suttner Product Catalog - 2023

Hydro Excavation Turbo Nozzles

ST-458 HYDRO EXCAVATING TURBO NOZZLES
NOZZLE
ORDER # PRESSURE TEMP. INLET WEIGHT REPAIR KIT
SIZE
200458982 6000 PSI 190° F 3.0 1/2" F 1.60 lb 200457130
200458983 6000 PSI 190° F 3.5 1/2" F 1.60 lb 200457135
200458984 6000 PSI 190° F 4.0 1/2" F 1.60 lb 200457140
200458985 6000 PSI 190° F 4.5 1/2" F 1.60 lb 200457145
200458986 6000 PSI 190° F 5.0 1/2" F 1.60 lb 200457150
200458987 6000 PSI 190° F 5.5 1/2" F 1.60 lb 200457155
200458988 6000 PSI 190° F 6.0 1/2" F 1.60 lb 200457160
200458990 6000 PSI 190° F 7.0 1/2" F 1.60 lb 200457170
200458981 6000 PSI 190° F 8.0 1/2" F 1.60 lb 200457180
200458991 6000 PSI 190° F 9.0 1/2" F 1.60 lb 200457190 ALWAYS START TURBO
200458992 6000 PSI 190° F 10.0 1/2" F 1.60 lb 200457110 NOZZLE IN A
200458993 6000 PSI 190° F 12.0 1/2" F 1.60 lb 200458312 DOWNWARD POSITION.
THE USE OF A TURBO
• Added extension to the outlet to help prevent mud STRAINER IS
and dirt from damaging the seat and rotor RECOMMENDED FOR ALL
• Molded and wear resistant poly cover TURBO NOZZLES.
• Increases the lifetime of the nozzle significantly
• Different colors available per request
• Ideal for hydro excavating
• Orifice size stamped on inlet nut

ST-458H TURBO NOZZLES

ORDER # PRESSURE TEMP. ORIFICE INLET WEIGHT REPAIR KIT
200458712 6000 PSI 212° F 12.0 1/2" FPT 1.60 lb 200458312
200458715 6000 PSI 212° F 15.0 1/2" FPT 1.60 lb 200458315
200458720 6000 PSI 212° F 20.0 1/2" FPT 1.60 lb 200458320
200458725 6000 PSI 212° F 25.0 1/2" FPT 1.60 lb 200458325
200458730 6000 PSI 212° F 30.0 1/2" FPT 1.60 lb 200458330

• Increases cleaning efficiency as much as 200%
• The 0° rotation creates a cleaning and tearing action
• Minimum 1000 PSI
• Improved materials for a longer life ALWAYS START TURBO
NOZZLE IN A
• Ideal for hydro excavating DOWNWARD POSITION.
• Box quantity: 25
THE USE OF A TURBO
STRAINER IS
ALSO AVAILABLE: 20° spray angle rotating spray pattern RECOMMENDED FOR ALL
Available Without Cap TURBO NOZZLES.
in 12.0 orifice
#200458712

1/2” inlet

SUTTNER AMERICA COMPANY 57
