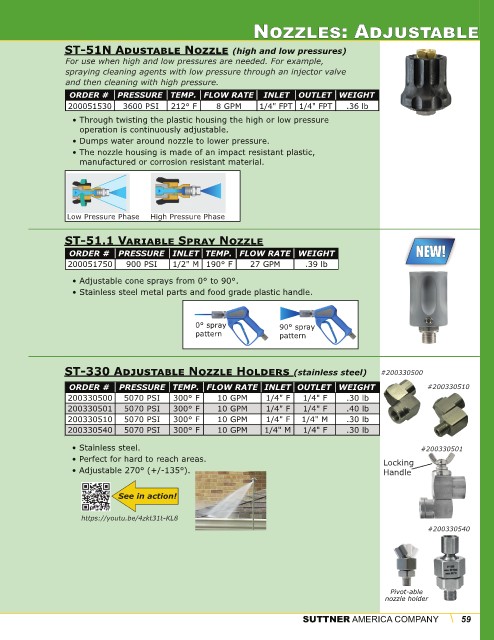

Page 59 - Suttner Product Catalog - 2025-2026

NOZZLES: ADJUSTABLE

ST-51N ADUSTABLE NOZZLE (high and low pressures)
For use when high and low pressures are needed. For example,
spraying cleaning agents with low pressure through an injector valve
and then cleaning with high pressure.
ORDER # PRESSURE TEMP. FLOW RATE INLET OUTLET WEIGHT
200051530 3600 PSI 212° F 8 GPM 1/4" FPT 1/4" FPT .36 lb
• Through twisting the plastic housing the high or low pressure
operation is continuously adjustable.
• Dumps water around nozzle to lower pressure.
• The nozzle housing is made of an impact resistant plastic,
manufactured or corrosion resistant material.

Low Pressure Phase High Pressure Phase

ST-51.1 VARIABLE SPRAY NOZZLE
ORDER # PRESSURE INLET TEMP. FLOW RATE WEIGHT NEW!
200051750 900 PSI 1/2" M 190° F 27 GPM .39 lb
• Adjustable cone sprays from 0° to 90°.
• Stainless steel metal parts and food grade plastic handle.

0° spray 90° spray
pattern pattern

ST-330 ADJUSTABLE NOZZLE HOLDERS (stainless steel) #200330500
ORDER # PRESSURE TEMP. FLOW RATE INLET OUTLET WEIGHT #200330510
200330500 5070 PSI 300° F 10 GPM 1/4" F 1/4" F .30 lb
200330501 5070 PSI 300° F 10 GPM 1/4" F 1/4" F .40 lb
200330510 5070 PSI 300° F 10 GPM 1/4" F 1/4" M .30 lb
200330540 5070 PSI 300° F 10 GPM 1/4" M 1/4" F .30 lb
• Stainless steel. #200330501
• Perfect for hard to reach areas. Locking
• Adjustable 270° (+/-135°). Handle

See in action!

https://youtu.be/4zkt31t-KL8
#200330540

Pivot-able
nozzle holder
/
SUTTNER AMERICA COMPANY 59
