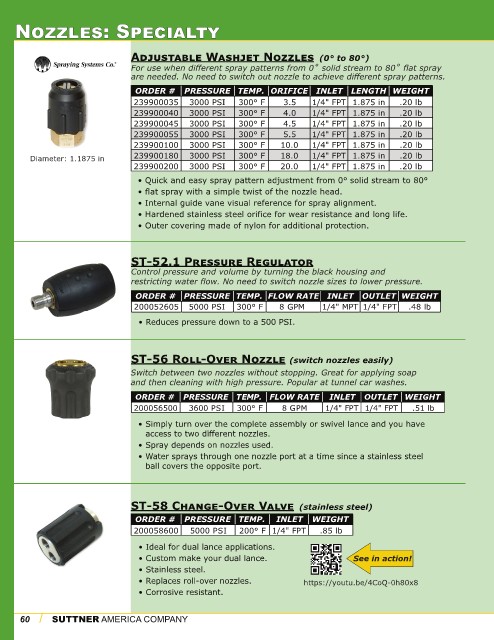

Page 60 - Suttner Product Catalog - 2025-2026

NOZZLES: SPECIALTY

ADJUSTABLE WASHJET NOZZLES (0° to 80°)
For use when different spray patterns from 0˚ solid stream to 80˚ flat spray
are needed. No need to switch out nozzle to achieve different spray patterns.
ORDER # PRESSURE TEMP. ORIFICE INLET LENGTH WEIGHT
239900035 3000 PSI 300° F 3.5 1/4" FPT 1.875 in .20 lb
239900040 3000 PSI 300° F 4.0 1/4" FPT 1.875 in .20 lb
239900045 3000 PSI 300° F 4.5 1/4" FPT 1.875 in .20 lb
239900055 3000 PSI 300° F 5.5 1/4" FPT 1.875 in .20 lb
239900100 3000 PSI 300° F 10.0 1/4" FPT 1.875 in .20 lb
Diameter: 1.1875 in 239900180 3000 PSI 300° F 18.0 1/4" FPT 1.875 in .20 lb
239900200 3000 PSI 300° F 20.0 1/4" FPT 1.875 in .20 lb
• Quick and easy spray pattern adjustment from 0° solid stream to 80°
• flat spray with a simple twist of the nozzle head.
• Internal guide vane visual reference for spray alignment.
• Hardened stainless steel orifice for wear resistance and long life.
• Outer covering made of nylon for additional protection.

ST-52.1 PRESSURE REGULATOR
Control pressure and volume by turning the black housing and
restricting water flow. No need to switch nozzle sizes to lower pressure.
ORDER # PRESSURE TEMP. FLOW RATE INLET OUTLET WEIGHT
200052605 5000 PSI 300° F 8 GPM 1/4" MPT 1/4" FPT .48 lb
• Reduces pressure down to a 500 PSI.

ST-56 ROLL-OVER NOZZLE (switch nozzles easily)
Switch between two nozzles without stopping. Great for applying soap
and then cleaning with high pressure. Popular at tunnel car washes.
ORDER # PRESSURE TEMP. FLOW RATE INLET OUTLET WEIGHT
200056500 3600 PSI 300° F 8 GPM 1/4" FPT 1/4" FPT .51 lb

• Simply turn over the complete assembly or swivel lance and you have
access to two different nozzles.
• Spray depends on nozzles used.
• Water sprays through one nozzle port at a time since a stainless steel
ball covers the opposite port.

ST-58 CHANGE-OVER VALVE (stainless steel)
ORDER # PRESSURE TEMP. INLET WEIGHT
200058600 5000 PSI 200° F 1/4" FPT .85 lb

• Ideal for dual lance applications.
• Custom make your dual lance. See in action!
• Stainless steel.
• Replaces roll-over nozzles. https://youtu.be/4CoQ-0h80x8
• Corrosive resistant.

/
