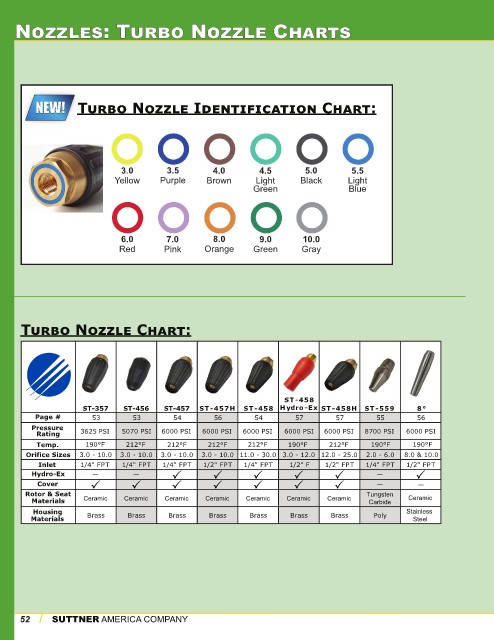

NOZZLES: TURBO NOZZLE CHARTS
NEW! TURBO NOZZLE IDENTIFICATION CHART:
3.0 3.5 4.0 4.5 5.0 5.5
Yellow Purple Brown Light Black Light
Green Blue
6.0 7.0 8.0 9.0 10.0
Red Pink Orange Green Gray
TURBO NOZZLE CHART:
ST -458
ST-357 ST-456 ST-457 ST -457H ST -458 H ydro -Ex ST -458H ST -559 8°
Page # 53 53 54 56 54 57 57 55 56
Pressure
Rating 3625 PSI 5070 PSI 6000 PSI 6000 PSI 6000 PSI 6000 PSI 6000 PSI 8700 PSI 6000 PSI
Temp. 190°F 212°F 212°F 212°F 212°F 190°F 212°F 190°F 190°F
Orifice Sizes 3.0 - 10.0 3.0 - 10.0 3.0 - 10.0 3.0 - 10.0 11.0 - 30.0 3.0 - 12.0 12.0 - 25.0 2.0 - 6.0 8.0 & 10.0
Inlet 1/4" FPT 1/4" FPT 1/4" FPT 1/2" FPT 1/4" FPT 1/2" F 1/2" FPT 1/4" FPT 1/2" FPT
Hydro-Ex — — —
Cover — —
Rotor & Seat Tungsten
Materials Ceramic Ceramic Ceramic Ceramic Ceramic Ceramic Ceramic Carbide Ceramic
Housing Stainless
Materials Brass Brass Brass Brass Brass Brass Brass Poly Steel
/
