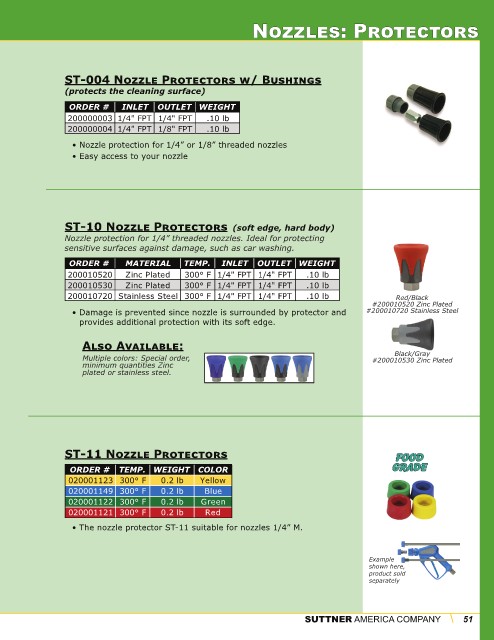

Page 51 - Suttner Product Catalog - 2023

Nozzle Protectors

ST-004 NOZZLE PROTECTORS w/ BUSHING
(protects the cleaning surface)

ORDER # INLET OUTLET WEIGHT
200000003 1/4" FPT 1/4" FPT .10 lb
200000004 1/4" FPT 1/8" FPT .10 lb

• Nozzle protection for 1/4” or 1/8” threaded nozzles
• Easy access to your nozzle

ST-10 NOZZLE PROTECTORS (soft edge, hard body)
Nozzle protection for 1/4” threaded nozzles. Ideal for protecting sensitive
surfaces against damage, such as car washing
ORDER # MATERIAL TEMP. INLET OUTLET WEIGHT
200010520 Zinc Plated 300° F 1/4" FPT 1/4" FPT .10 lb
200010530 Zinc Plated 300° F 1/4" FPT 1/4" FPT .10 lb
200010720 Stainless Steel 300° F 1/4" FPT 1/4" FPT .10 lb Red/Black
#200010520 Zinc Plated
• Damage is prevented since nozzle is surrounded by protector #200010720 Stainless Steel
and provides additional protection with its soft edge

ALSO AVAILABLE:
Black/Gray
Multiple colors: Special order, #200010530 Zinc Plated
minimum quantities Zinc
plated or stainless steel.

NOZZLE PROTECTORS ST-11
ORDER # TEMP. WEIGHT COLOR
020001123 300° F 0.2 lb Yellow
020001149 300° F 0.2 lb Blue
020001122 300° F 0.2 lb Green
020001121 300° F 0.2 lb Red
• The nozzle protector ST-11 suitable for nozzles 1/4” M

Example
shown here,
product sold
separately

SUTTNER AMERICA COMPANY 51
