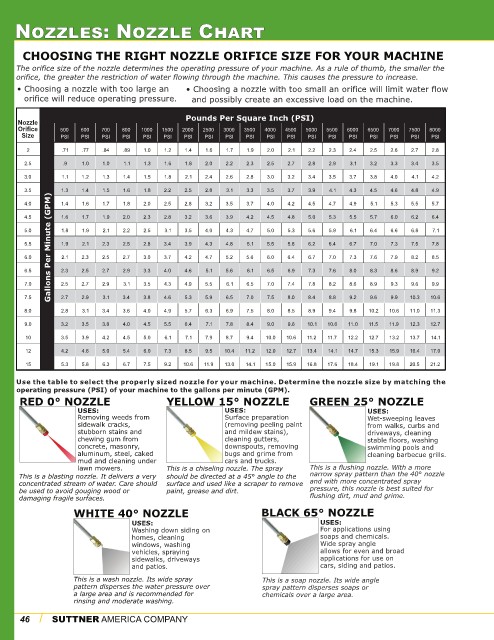

NOZZLES: NOZZLE CHART

CHOOSING THE RIGHT NOZZLE ORIFICE SIZE FOR YOUR MACHINE

The orifice size of the nozzle determines the operating pressure of your machine. As a rule of thumb, the smaller the
orifice, the greater the restriction of water flowing through the machine. This causes the pressure to increase.
• Choosing a nozzle with too large an • Choosing a nozzle with too small an orifice will limit water flow
orifice will reduce operating pressure. and possibly create an excessive load on the machine.

Pounds Per Square Inch (PSI)
Nozzle
Orifice 500 600 700 800 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 6000 6500 7000 7500 8000
Size PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI PSI

2 .71 .77 .84 .89 1.0 1.2 1.4 1.6 1.7 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8
2.5 .9 1.0 1.0 1.1 1.3 1.6 1.8 2.0 2.2 2.3 2.5 2.7 2.8 2.9 3.1 3.2 3.3 3.4 3.5
3.0 1.1 1.2 1.3 1.4 1.5 1.8 2.1 2.4 2.6 2.8 3.0 3.2 3.4 3.5 3.7 3.8 4.0 4.1 4.2
3.5 1.3 1.4 1.5 1.6 1.8 2.2 2.5 2.8 3.1 3.3 3.5 3.7 3.9 4.1 4.3 4.5 4.6 4.8 4.9
Gallons Per Minute (GPM)
4.0 1.4 1.6 1.7 1.8 2.0 2.5 2.8 3.2 3.5 3.7 4.0 4.2 4.5 4.7 4.9 5.1 5.3 5.5 5.7
4.5 1.6 1.7 1.9 2.0 2.3 2.8 3.2 3.6 3.9 4.2 4.5 4.8 5.0 5.3 5.5 5.7 6.0 6.2 6.4
5.0 1.8 1.9 2.1 2.2 2.5 3.1 3.5 4.0 4.3 4.7 5.0 5.3 5.6 5.9 6.1 6.4 6.6 6.8 7.1
5.5 1.9 2.1 2.3 2.5 2.8 3.4 3.9 4.3 4.8 5.1 5.5 5.8 6.2 6.4 6.7 7.0 7.3 7.5 7.8
6.0 2.1 2.3 2.5 2.7 3.0 3.7 4.2 4.7 5.2 5.6 6.0 6.4 6.7 7.0 7.3 7.6 7.9 8.2 8.5
6.5 2.3 2.5 2.7 2.9 3.3 4.0 4.6 5.1 5.6 6.1 6.5 6.9 7.3 7.6 8.0 8.3 8.6 8.9 9.2
7.0 2.5 2.7 2.9 3.1 3.5 4.3 4.9 5.5 6.1 6.5 7.0 7.4 7.8 8.2 8.6 8.9 9.3 9.6 9.9

7.5 2.7 2.9 3.1 3.4 3.8 4.6 5.3 5.9 6.5 7.0 7.5 8.0 8.4 8.8 9.2 9.6 9.9 10.3 10.6
8.0 2.8 3.1 3.4 3.6 4.0 4.9 5.7 6.3 6.9 7.5 8.0 8.5 8.9 9.4 9.8 10.2 10.6 11.0 11.3
9.0 3.2 3.5 3.8 4.0 4.5 5.5 6.4 7.1 7.8 8.4 9.0 9.6 10.1 10.6 11.0 11.5 11.9 12.3 12.7
10 3.5 3.9 4.2 4.5 5.0 6.1 7.1 7.9 8.7 9.4 10.0 10.6 11.2 11.7 12.2 12.7 13.2 13.7 14.1
12 4.2 4.6 5.0 5.4 6.0 7.3 8.5 9.5 10.4 11.2 12.0 12.7 13.4 14.1 14.7 15.3 15.9 16.4 17.0
15 5.3 5.8 6.3 6.7 7.5 9.2 10.6 11.9 13.0 14.1 15.0 15.9 16.8 17.6 18.4 19.1 19.8 20.5 21.2
Use the table to select the properly sized nozzle for your machine. Determine the nozzle size by matching the
operating pressure (PSI) of your machine to the gallons per minute (GPM).
RED 0° NOZZLE YELLOW 15° NOZZLE GREEN 25° NOZZLE
USES: USES: USES:
Removing weeds from Surface preparation Wet-sweeping leaves
sidewalk cracks, (removing peeling paint from walks, curbs and
stubborn stains and and mildew stains), driveways, cleaning
chewing gum from cleaning gutters, stable floors, washing
concrete, masonry, downspouts, removing swimming pools and
aluminum, steel, caked bugs and grime from cleaning barbecue grills.
mud and cleaning under cars and trucks.
lawn mowers. This is a chiseling nozzle. The spray This is a flushing nozzle. With a more
This is a blasting nozzle. It delivers a very should be directed at a 45° angle to the narrow spray pattern than the 40° nozzle
concentrated stream of water. Care should surface and used like a scraper to remove and with more concentrated spray
be used to avoid gouging wood or paint, grease and dirt. pressure, this nozzle is best suited for
damaging fragile surfaces. flushing dirt, mud and grime.
WHITE 40° NOZZLE BLACK 65° NOZZLE
USES: USES:
Washing down siding on For applications using
homes, cleaning soaps and chemicals.
windows, washing Wide spray angle
vehicles, spraying allows for even and broad
sidewalks, driveways applications for use on
and patios. cars, siding and patios.
This is a wash nozzle. Its wide spray This is a soap nozzle. Its wide angle
pattern disperses the water pressure over spray pattern disperses soaps or
a large area and is recommended for chemicals over a large area.
rinsing and moderate washing.
/
