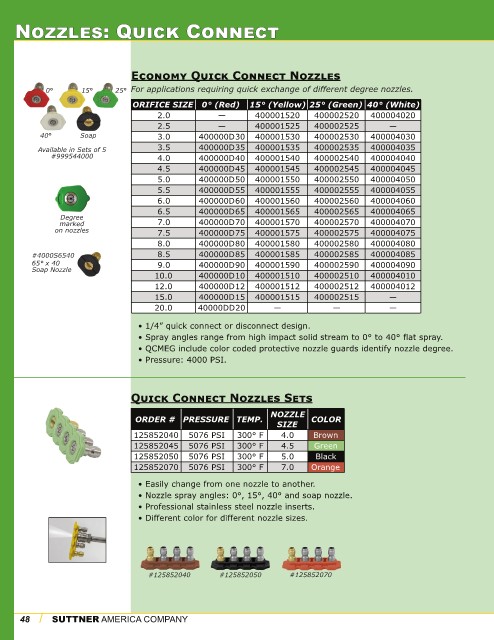

Page 48 - Suttner Product Catalog - 2025-2026

NOZZLES: QUICK CONNECT

ECONOMY QUICK CONNECT NOZZLES

0° 15° 25° For applications requiring quick exchange of different degree nozzles.
ORIFICE SIZE 0° (Red) 15° (Yellow) 25° (Green) 40° (White)
2.0 — 400001520 400002520 400004020
2.5 — 400001525 400002525 —
40° Soap 3.0 400000D30 400001530 400002530 400004030
Available in Sets of 5 3.5 400000D35 400001535 400002535 400004035
#999544000 4.0 400000D40 400001540 400002540 400004040
4.5 400000D45 400001545 400002545 400004045
5.0 400000D50 400001550 400002550 400004050
5.5 400000D55 400001555 400002555 400004055
6.0 400000D60 400001560 400002560 400004060
6.5 400000D65 400001565 400002565 400004065
Degree
marked 7.0 400000D70 400001570 400002570 400004070
on nozzles 7.5 400000D75 400001575 400002575 400004075
8.0 400000D80 400001580 400002580 400004080
#4000S6540 8.5 400000D85 400001585 400002585 400004085
65° x 40 9.0 400000D90 400001590 400002590 400004090
Soap Nozzle
10.0 400000D10 400001510 400002510 400004010
12.0 400000D12 400001512 400002512 400004012
15.0 400000D15 400001515 400002515 —
20.0 40000DD20 — — —

• 1/4” quick connect or disconnect design.
• Spray angles range from high impact solid stream to 0° to 40° flat spray.
• QCMEG include color coded protective nozzle guards identify nozzle degree.
• Pressure: 4000 PSI.

QUICK CONNECT NOZZLES SETS

NOZZLE
ORDER # PRESSURE TEMP. COLOR
SIZE
125852040 5076 PSI 300° F 4.0 Brown
125852045 5076 PSI 300° F 4.5 Green
125852050 5076 PSI 300° F 5.0 Black
125852070 5076 PSI 300° F 7.0 Orange

• Easily change from one nozzle to another.
• Nozzle spray angles: 0°, 15°, 40° and soap nozzle.
• Professional stainless steel nozzle inserts.
• Different color for different nozzle sizes.

#125852040 #125852050 #125852070

/
