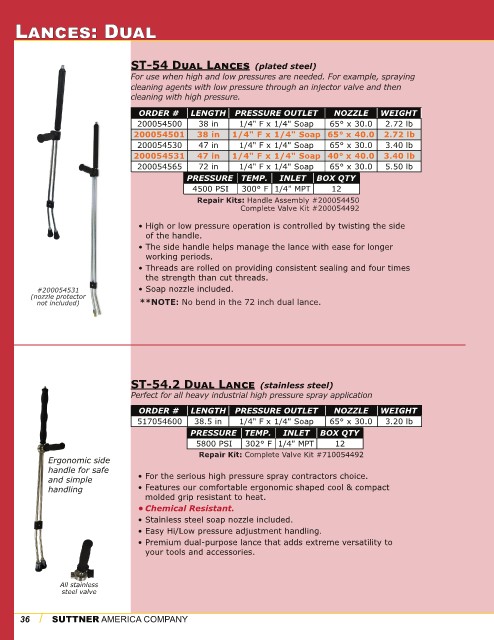

Page 36 - Suttner Product Catalog - 2023

Dual Lances

ST-54 DUAL LANCES (plated steel)
For use when high and low pressures are needed. For example, spraying
cleaning agents with low pressure through an injector valve and then cleaning
with high pressure.
ORDER # LENGTH PRESSURE OUTLET NOZZLE WEIGHT
200054500 38 in 1/4" F x 1/4" Soap 65° x 30.0 2.72 lb
200054501 38 in 1/4" F x 1/4" Soap 65° x 40.0 2.72 lb
200054530 47 in 1/4" F x 1/4" Soap 65° x 30.0 3.40 lb
200054531 47 in 1/4" F x 1/4" Soap 40° x 40.0 3.40 lb
200054565 72 in 1/4" F x 1/4" Soap 65° x 30.0 5.50 lb
PRESSURE TEMP. INLET BOX QTY
4500 PSI 300° F 1/4" MPT 12
Repair Kits: Handle Assembly #200054450
Complete Valve Kit #200054492

#200054531
(nozzle protector not included)

• High or low pressure operation is controlled by twisting the side
of the handle
• The side handle helps manage the lance with ease for longer
working periods
• Threads are rolled on providing consistent sealing and four times
the strength than cut threads
• Soap nozzle included
**NOTE: No bend in the 72 inch dual lance

ST-54.2 DUAL LANCE (stainless steel)
Perfect for all heavy industrial high pressure spray application
ORDER # LENGTH PRESSURE OUTLET NOZZLE WEIGHT
517054600 38.5 in 1/4" F x 1/4" Soap 65° x 30.0 3.20 lb
PRESSURE TEMP. INLET BOX QTY
5800 PSI 302° F 1/4" MPT 12
Repair Kits: Complete Valve Kit #710053492

Ergonomic side handle for
safe and simple handling

• For the serious high pressure spray contractors choice
• Features our comfortable ergonomic shaped cool & compact
molded grip resistant to heat
• Chemical resistant
• Stainless steel soap nozzle included
• Easy Hi/Low pressure adjustment handling
All stainless • Premium dual-purpose lance that adds extreme versatility
steel valve
to your tools and accessories

36 SUTTNER AMERICA COMPANY
