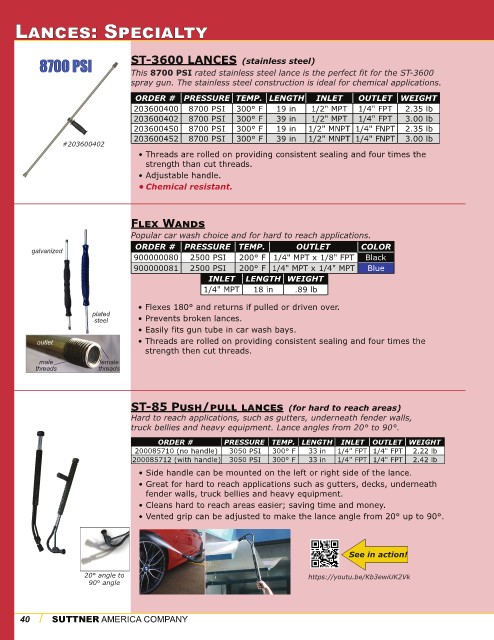

Page 40 - Suttner Product Catalog - 2025-2026

LANCES: SPECIALTY

8700 PSI ST-3600 LANCES (stainless steel)
This 8700 PSI rated stainless steel lance is the perfect fit for the ST-3600
spray gun. The stainless steel construction is ideal for chemical applications.
ORDER # PRESSURE TEMP. LENGTH INLET OUTLET WEIGHT
203600400 8700 PSI 300° F 19 in 1/2" MPT 1/4" FPT 2.35 lb
203600402 8700 PSI 300° F 39 in 1/2" MPT 1/4" FPT 3.00 lb
203600450 8700 PSI 300° F 19 in 1/2" MNPT 1/4" FNPT 2.35 lb
203600452 8700 PSI 300° F 39 in 1/2" MNPT 1/4" FNPT 3.00 lb
#203600402
• Threads are rolled on providing consistent sealing and four times the
strength than cut threads.
• Adjustable handle.
• Chemical resistant.

FLEX WANDS

Popular car wash choice and for hard to reach applications.
ORDER # PRESSURE TEMP. OUTLET COLOR
galvanized
900000080 2500 PSI 200° F 1/4" MPT x 1/8" FPT Black
900000081 2500 PSI 200° F 1/4" MPT x 1/4" MPT Blue
INLET LENGTH WEIGHT
1/4" MPT 18 in .89 lb

• Flexes 180° and returns if pulled or driven over.
plated
steel • Prevents broken lances.
• Easily fits gun tube in car wash bays.
outlet • Threads are rolled on providing consistent sealing and four times the
strength then cut threads.
male female
threads threads

ST-85 PUSH/PULL LANCES (for hard to reach areas)
Hard to reach applications, such as gutters, underneath fender walls,
truck bellies and heavy equipment. Lance angles from 20° to 90°.

ORDER # PRESSURE TEMP. LENGTH INLET OUTLET WEIGHT
200085710 (no handle) 3050 PSI 300° F 33 in 1/4" FPT 1/4" FPT 2.22 lb
200085712 (with handle) 3050 PSI 300° F 33 in 1/4" FPT 1/4" FPT 2.42 lb
• Side handle can be mounted on the left or right side of the lance.
• Great for hard to reach applications such as gutters, decks, underneath
fender walls, truck bellies and heavy equipment.
• Cleans hard to reach areas easier; saving time and money.
• Vented grip can be adjusted to make the lance angle from 20° up to 90°.

See in action!

20° angle to https://youtu.be/Kb3ewiUK2Vk
90° angle

/
40 SUTTNER AMERICA COMPANY
