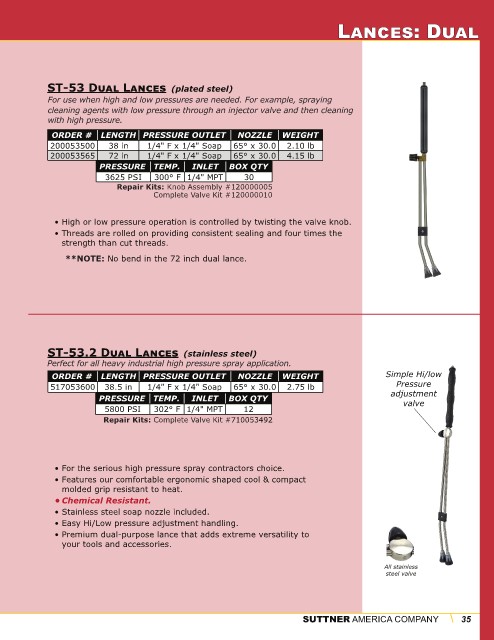

Page 35 - Suttner Product Catalog - 2023

Dual Lances

ST-53 DUAL LANCES (plated steel)
For use when high and low pressures are needed. For example, spraying
cleaning agents with low pressure through an injector valve and then cleaning
with high pressure.
ORDER # LENGTH PRESSURE OUTLET NOZZLE WEIGHT
200053500 38 in 1/4" F x 1/4" Soap 65° x 30.0 2.72 lb
200053565 72 in 1/4" F x 1/4" Soap 65° x 30.0 5.50 lb
PRESSURE TEMP. INLET BOX QTY
3625 PSI 300° F 1/4" MPT 30
Repair Kits: Knob Assembly #120000005
Complete Valve Kit #120000010

• High or low pressure operation is controlled by twisting the valve knob
• Threads are rolled on providing consistent sealing and four times the
strength than cut threads
**NOTE: No bend in the 72 inch dual lance

ST-53.2 DUAL LANCE (stainless steel)
Perfect for all heavy industrial high pressure spray application
ORDER # LENGTH PRESSURE OUTLET NOZZLE WEIGHT
517053600 38.5 in 1/4" F x 1/4" Soap 65° x 30.0 2.75 lb
PRESSURE TEMP. INLET BOX QTY
5800 PSI 302° F 1/4" MPT 12
Repair Kits: Complete Valve Kit #710053492

Simple Hi/low Pressure adjustment valve

• For the serious high pressure spray contractors choice
• Features our comfortable ergonomic shaped cool & compact
molded grip resistant to heat
• Chemical resistant
• Stainless steel soap nozzle included
• Easy Hi/Low pressure adjustment handling All stainless
• Premium dual-purpose lance that adds extreme versatility steel valve
to your tools and accessories

SUTTNER AMERICA COMPANY 35
