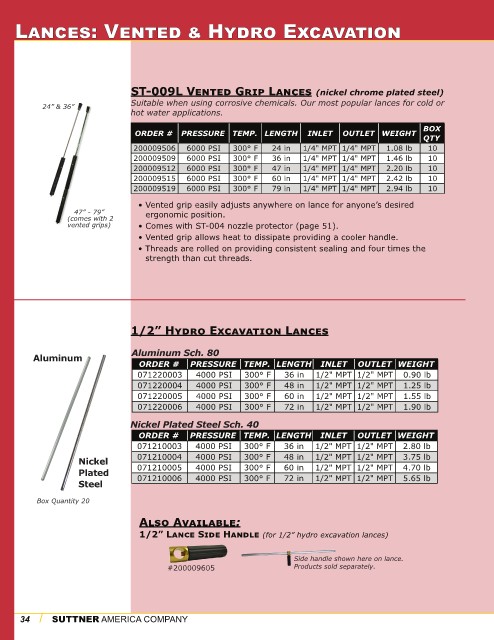

Vented Lances & Hydro Excavation Lances

ST-009L VENTED GRIP LANCES

(nickel chrome plated steel)
Suitable when using corrosive chemicals. Our most popular lances for cold or
24” & 36”
hot water applications.
BOX
ORDER # PRESSURE TEMP. LENGTH INLET OUTLET WEIGHT
QTY
200009506 6000 PSI 300° F 24 in 1/4" MPT 1/4" MPT 1.08 lb 10
200009509 6000 PSI 300° F 36 in 1/4" MPT 1/4" MPT 1.46 lb 10
200009512 6000 PSI 300° F 47 in 1/4" MPT 1/4" MPT 2.20 lb 10
200009515 6000 PSI 300° F 60 in 1/4" MPT 1/4" MPT 2.42 lb 10
200009519 6000 PSI 300° F 79 in 1/4" MPT 1/4" MPT 2.94 lb 10

• Vented grip easily adjusts anywhere on lance for anyone’s desired
47” - 79” ergonomic position
(comes with 2
vented grips) • Comes with ST-004 nozzle protector (page 51)
• Vented grip allows heat to dissipate providing a cooler handle
• Threads are rolled on providing consistent sealing and four
times the strength than cut threads

1/2” HYDRO EXCAVATION LANCES

Aluminum Aluminum Sch. 80
ORDER # PRESSURE TEMP. LENGTH INLET OUTLET BOX QTY
071220003 4000 PSI 300° F 36 in 1/2” MPT 1/2” MPT 20
071220004 4000 PSI 300° F 48 in 1/2” MPT 1/2” MPT 20
071220005 4000 PSI 300° F 60 in 1/2” MPT 1/2” MPT 20
071220006 4000 PSI 300° F 72 in 1/2” MPT 1/2” MPT 20

Nickel Plated Steel Sch. 40
ORDER # PRESSURE TEMP. LENGTH INLET OUTLET BOX QTY
071210003 4000 PSI 300° F 36 in 1/2” MPT 1/2” MPT 20
Nickel 071210004 4000 PSI 300° F 48 in 1/2” MPT 1/2” MPT 20
Plated 071210005 4000 PSI 300° F 60 in 1/2” MPT 1/2” MPT 20
300° F
20
1/2” MPT 1/2” MPT
72 in
4000 PSI
071210006
Steel
ALSO AVAILABLE:
1/2” LANCE SIDE HANDLE (for 1/2” hydro excavation lances)

Side handle shown here on lance.
#200009605 Products sold separately.
