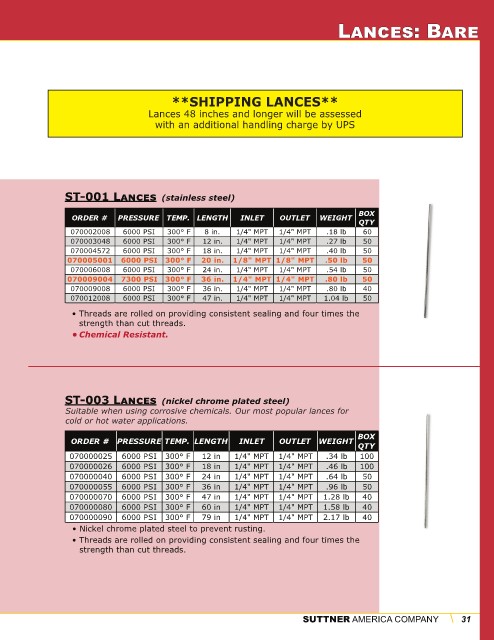

Page 31 - Suttner Product Catalog - 2025-2026

LANCES LANCES: BARE

**SHIPPING LANCES**

Lances 48 inches and longer will be assessed
with an additional handling charge by UPS

ST-001 LANCES (stainless steel)
BOX
ORDER # PRESSURE TEMP. LENGTH INLET OUTLET WEIGHT
QTY
070002008 6000 PSI 300° F 8 in. 1/4" MPT 1/4" MPT .18 lb 60
070003048 6000 PSI 300° F 12 in. 1/4" MPT 1/4" MPT .27 lb 50
070004572 6000 PSI 300° F 18 in. 1/4" MPT 1/4" MPT .40 lb 50
070005001 6000 PSI 300° F 20 in. 1/8" MPT 1/8" MPT .50 lb 50
070006008 6000 PSI 300° F 24 in. 1/4" MPT 1/4" MPT .54 lb 50
070009004 7300 PSI 300° F 36 in. 1/4" MPT 1/4" MPT .80 lb 50
070009008 6000 PSI 300° F 36 in. 1/4" MPT 1/4" MPT .80 lb 40
070012008 6000 PSI 300° F 47 in. 1/4" MPT 1/4" MPT 1.04 lb 50

• Threads are rolled on providing consistent sealing and four times the
strength than cut threads.
• Chemical Resistant.

ST-003 LANCES (nickel chrome plated steel)
Suitable when using corrosive chemicals. Our most popular lances for
cold or hot water applications.

BOX
ORDER # PRESSURE TEMP. LENGTH INLET OUTLET WEIGHT
QTY
070000025 6000 PSI 300° F 12 in 1/4" MPT 1/4" MPT .34 lb 100
070000026 6000 PSI 300° F 18 in 1/4" MPT 1/4" MPT .46 lb 100
070000040 6000 PSI 300° F 24 in 1/4" MPT 1/4" MPT .64 lb 50
070000055 6000 PSI 300° F 36 in 1/4" MPT 1/4" MPT .96 lb 50
070000070 6000 PSI 300° F 47 in 1/4" MPT 1/4" MPT 1.28 lb 40
070000080 6000 PSI 300° F 60 in 1/4" MPT 1/4" MPT 1.58 lb 40
070000090 6000 PSI 300° F 79 in 1/4" MPT 1/4" MPT 2.17 lb 40
• Nickel chrome plated steel to prevent rusting.
• Threads are rolled on providing consistent sealing and four times the
strength than cut threads.

/
SUTTNER AMERICA COMPANY 31
