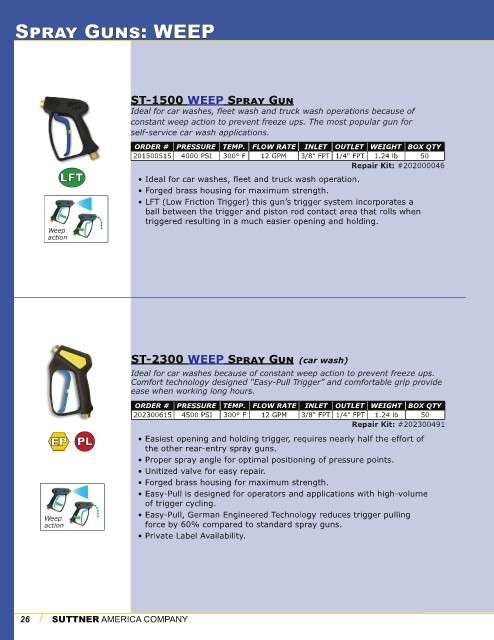

Page 26 - Suttner Product Catalog - 2023

WEEP Spray Guns

ST-1500 WEEP SPRAY GUN
Ideal for car washes, fleet wash and truck wash operations because of
constant weep action to prevent freeze ups. The most popular gun for
self-service car wash applications.
ORDER # PRESSURE TEMP. FLOW RATE INLET OUTLET WEIGHT BOX QTY
201500515 4000 PSI 300° F 12 GPM 3/8" FPT 1/4" FPT 1.24 lb 50
LFT
LFT Repair Kit: #202000046
• Ideal for car washes, fleet and truck wash operation
• LFT (Low Friction Trigger) this gun’s trigger system
incorporates a ball between the trigger and piston
rod contact area that rolls when triggered resulting
Weep
action in a much easier opening and holding

ST-2300 WEEP SPRAY GUN (car wash)

Ideal for car washes because of constant weep action to prevent freeze ups.
Comfort technology designed “Easy-Pull Trigger” and comfortable grip provide
ease when working long hours.
ORDER # PRESSURE TEMP. FLOW RATE INLET OUTLET WEIGHT BOX QTY
202300615 4500 PSI 300° F 12 GPM 3/8" FPT 1/4" FPT 1.24 lb 50
Repair Kit: #202300491

EP EP PL PL • Easiest opening and holding trigger, requires nearly half
the effort of the other rear-entry spray guns
• Proper spray angle for optimal positioning of pressure points
• Unitized valve for easy repair
• Forged brass housing for maximum strength
• Easy-Pull is designed for operators and applications
with high-volume of trigger cycling
• Easy-Pull, German Engineered Technology reduces trigger
Weep
action pulling force by 60% compared to standard spray guns
• Private label availability
