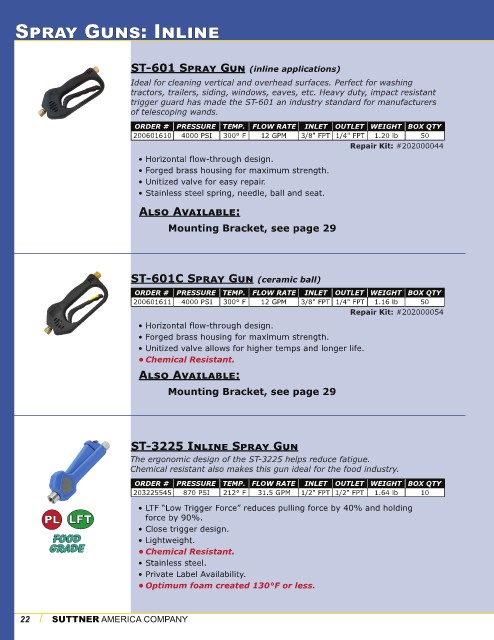

Page 22 - Suttner Product Catalog - 2023

Inline Spray Guns

ST-601 SPRAY GUN (inline applications)
Ideal for cleaning vertical and overhead surfaces. Perfect for washing
tractors, trailers, siding, windows, eaves, etc. Heavy duty, impact resistant
trigger guard has made the ST-601 an industry standard for manufacturers
of telescoping wands.

ORDER # PRESSURE TEMP. FLOW RATE INLET OUTLET WEIGHT BOX QTY
200601610 4000 PSI 300° F 12 GPM 3/8" FPT 1/4" FPT 1.20 lb 50
Repair Kit: #202000044
• Horizontal flow-through design
• Forged brass housing for maximum strength
• Unitized valve for easy repair
• Stainless steel spring, needle, ball and seat
ALSO AVAILABLE:

Mounting Bracket, see page 29

ST-601C SPRAY GUN (ceramic ball)
ORDER # PRESSURE TEMP. FLOW RATE INLET OUTLET WEIGHT BOX QTY
200601611 4000 PSI 300° F 12 GPM 3/8" FPT 1/4" FPT 1.16 lb 50
Repair Kit: #202000054
• Horizontal flow-through design
• Forged brass housing for maximum strength
• Unitized valve allows for higher temps and longer life
• Chemical resistant
ALSO AVAILABLE:

Mounting Bracket, see page 29

ST-3225 INLINE SPRAY GUN

The ergonomic design of the ST-3225 helps reduce fatigue.
Chemical resistant also makes this gun ideal for the food industry.

ORDER # PRESSURE TEMP. FLOW RATE INLET OUTLET WEIGHT BOX QTY
203225545 870 PSI 212° F 31.5 GPM 1/2" FPT 1/2" FPT 1.64 lb 10
• LTF “Low Trigger Force” reduces pulling force by 40%
and holding force by 90%
LFT
PL PL LFT • Close trigger design
• Lightweight
• Chemical Resistant
• Stainless steel
• Private Label Availability
• Optimum foam created 130°F or less

22 SUTTNER AMERICA COMPANY
