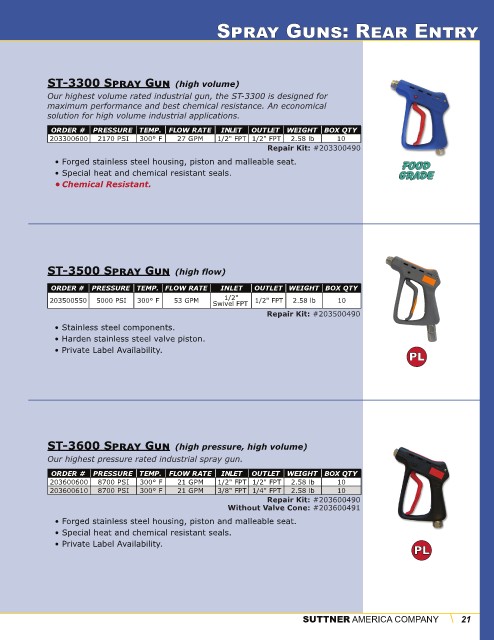

Page 21 - Suttner Product Catalog - 2023
P. 21

Rear Entry Spray Guns









              ST-3300 SPRAY GUN (high volume)
              Our highest volume rated industrial gun, the ST-3300 is designed for
              maximum performance and best chemical resistance. An economical
              solution for high volume industrial applications.
               ORDER #   PRESSURE TEMP.     FLOW RATE    INLET   OUTLET  WEIGHT    BOX QTY
               203300600   2170 PSI  300° F   27 GPM    1/2" FPT 1/2" FPT  2.58 lb    10
                                                                     Repair Kit: #203300490
              • Forged stainless steel housing, piston and malleable seat
              • Special heat and chemical resistant seals
              • Chemical resistant








              ST-3500 SPRAY GUN (high flow)

               ORDER #   PRESSURE TEMP.    FLOW RATE     INLET   OUTLET   WEIGHT   BOX QTY
                                                          1/2"
               203500550  5000 PSI  300° F    53 GPM              1/2" FPT  2.58 lb   10
                                                       Swivel FPT
                                                                     Repair Kit: #203500490
              • Stainless steel components
              • Harden stainless steel valve piston
              • Private Label Availability                                                              PL PL










              ST-3600 SPRAY GUN (high pressure, high volume)
              Our highest pressure rated industrial spray gun
               ORDER #   PRESSURE TEMP.     FLOW RATE    INLET   OUTLET  WEIGHT    BOX QTY
               203600600   8700 PSI  300° F   21 GPM    1/2" FPT 1/2" FPT  2.58 lb    10
               203600610   8700 PSI  300° F   21 GPM    3/8" FPT 1/4" FPT  2.58 lb    10
                                                                     Repair Kit: #203600490
                                                            Without Valve Cone: #203600491
              • Forged stainless steel housing, piston and malleable seat
              • Special heat and chemical resistant seals                                                PL PL
              • Private Label Availability















                                                                               SUTTNER AMERICA COMPANY       21
