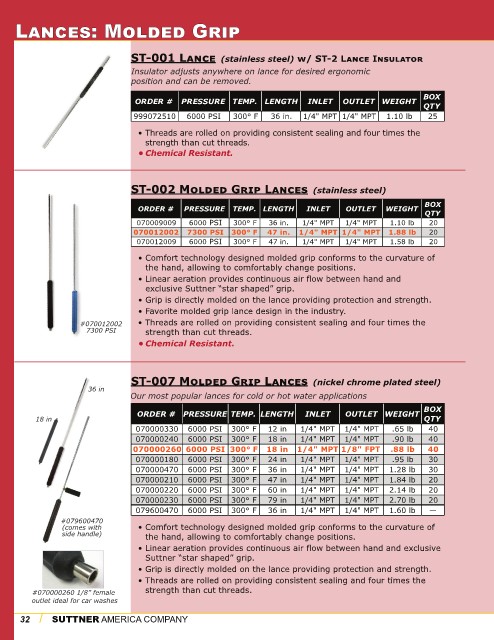

Page 32 - Suttner Product Catalog - 2023

Molded Grip Lances

ST-001 LANCE (stainless steel) w/ ST-2 LANCE INSULATOR
Insulator adjusts anywhere on lance for desired ergonomic
position and can be removed
BOX
ORDER # PRESSURE TEMP. LENGTH INLET OUTLET WEIGHT
QTY
999072510 6000 PSI 300° F 36 in. 1/4" MPT 1/4" MPT 1.10 lb 25

• Threads are rolled on providing consistent sealing and four
times the strength than cut threads
• Chemical resistant

ST-002 MOLDED GRIP LANCES (stainless steel)

BOX
ORDER # PRESSURE TEMP. LENGTH INLET OUTLET WEIGHT
QTY
070009009 6000 PSI 300° F 36 in. 1/4" MPT 1/4" MPT 1.10 lb 20
070012002 7300 PSI 300° F 47 in. 1/4" MPT 1/4" MPT 1.88 lb 20
070012009 6000 PSI 300° F 47 in. 1/4" MPT 1/4" MPT 1.58 lb 20

• Comfort technology designed molded grip conforms to the curvature of the
hand, allowing to comfortably change positions
• Linear aeration provides continuous air flow between hand and exclusive
Suttner “star shaped” grip
• Grip is directly molded on the lance providing protection and strength
• Favorite molded grip lance design in the industry
• Threads are rolled on providing consistent sealing and four
times the strength than cut threads
#070012002
7300 PSI • Chemical resistant

ST-007 MOLDED GRIP LANCES

(nickel chrome plated steel)
36 in
Our most popular lances for cold or hot water applications
BOX
18 in ORDER # PRESSURE TEMP. LENGTH INLET OUTLET WEIGHT QTY
070000330 6000 PSI 300° F 12 in 1/4" MPT 1/4" MPT .65 lb 40
070000240 6000 PSI 300° F 18 in 1/4" MPT 1/4" MPT .90 lb 40
070000260 6000 PSI 300° F 18 in 1/4" MPT 1/8" FPT .88 lb 40
070000180 6000 PSI 300° F 24 in 1/4" MPT 1/4" MPT .95 lb 30
070000470 6000 PSI 300° F 36 in 1/4" MPT 1/4" MPT 1.28 lb 30
070000210 6000 PSI 300° F 47 in 1/4" MPT 1/4" MPT 1.84 lb 20
070000220 6000 PSI 300° F 60 in 1/4" MPT 1/4" MPT 2.14 lb 20
070000230 6000 PSI 300° F 79 in 1/4" MPT 1/4" MPT 2.70 lb 20
079600470 6000 PSI 300° F 36 in 1/4" MPT 1/4" MPT 1.60 lb —
#079600470
(comes with • Comfort technology designed molded grip conforms to the curvature
side handle)
of the hand, allowing to comfortably change positions
• Linear aeration provides continuous air flow between hand and exclusive
Suttner “star shaped” grip
• Grip is directly molded on the lance providing protection and strength
• Threads are rolled on providing consistent sealing and four
#070000260 1/8” female times the strength than cut threads
outlet ideal for car washes

32 SUTTNER AMERICA COMPANY
