Page 10 - Suttner Product Catalog - 2023

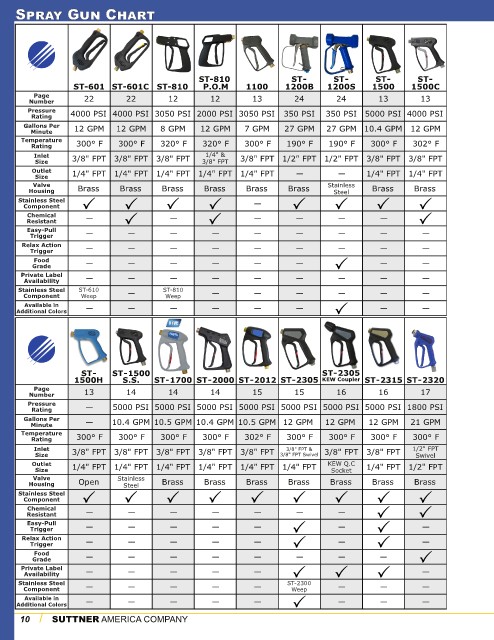

Spray Gun Chart

ST-810
ST-601 ST-601C ST-810 P.O.M ST-1100 ST-1200B ST-1200S ST-1500 ST-1500C
Page
Number 22 22 12 12 13 24 24 13 13
Pressure 4000 PSI 4000 PSI 3050 PSI 2000 PSI 3050 PSI 350 PSI 350 PSI 5000 PSI 4000 PSI
Rating
Gallons Per 12 GPM 12 GPM 8 GPM 12 GPM 7 GPM 27 GPM 27 GPM 10.4 GPM 12 GPM
Minute
Temperature 300° F 300° F 320° F 320° F 300° F 190° F 190° F 300° F 302° F
Rating
Inlet 3/8" FPT 3/8" FPT 3/8" FPT 1/4" & 3/8" FPT 1/2" FPT 1/2" FPT 3/8" FPT 3/8" FPT
Size 3/8" FPT
Outlet 1/4" FPT 1/4" FPT 1/4" FPT 1/4" FPT 1/4" FPT — — 1/4" FPT 1/4" FPT
Size
Valve Stainless
Housing Brass Brass Brass Brass Brass Brass Steel Brass Brass
Stainless Steel —
Component
Chemical — — — — — —
Resistant
Easy-Pull — — — — — — — — —
Trigger
Relax Action — — — — — — — — —
Trigger
Food — — — — — — — —
Grade
Private Label — — — — — — — — —
Availability
Stainless Steel ST-610 — ST-810 — — — — — —
Component Weep Weep
Available in — — — — — — — — —
Additional Colors
NEW!

ST-1500 ST-2305
ST-1500H S.S. ST-2000 ST-2012 ST-2305 KEW Coupler ST-2315 ST-2320 ST-2605
Page 13 14 14 14 15 15 16 16 17
Number
Pressure
Rating — 5000 PSI 5000 PSI 5000 PSI 5000 PSI 5000 PSI 5000 PSI 1800 PSI 5000 PSI
Gallons Per — 10.4 GPM 10.4 GPM 10.5 GPM 12 GPM 12 GPM 12 GPM 21 GPM 12 GPM
Minute
Temperature 300° F 300° F 300° F 302° F 300° F 300° F 300° F 300° F 300° F
Rating
Inlet 3/8" FPT 3/8" FPT 3/8" FPT 3/8" FPT 3/8" FPT & 3/8" FPT 3/8" FPT 1/2" FPT 3/8" FPT
Size 3/8" FPT Swivel Swivel
Outlet 1/4" FPT 1/4" FPT 1/4" FPT 1/4" FPT 1/4" FPT KEW Q.C 1/4" FPT 1/2" FPT 1/4" FPT
Size Socket
Valve Open Stainless Brass Brass Brass Brass Brass Brass Brass
Housing Steel
Stainless Steel —
Component
Chemical — — — — — — —
Resistant
Easy-Pull — — — — — — —
Trigger
Relax Action — — — — — — —
Trigger
Food
Grade — — — — — — - —
Private Label — — — — —
Availability
Stainless Steel — — — — ST-2300 — — — —
Component Weep
Available in — — — — — — — —
Additional Colors
10 SUTTNER AMERICA COMPANY
