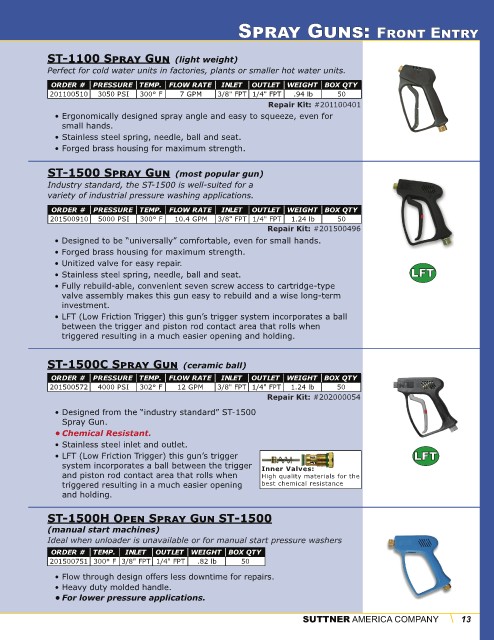

Page 13 - Suttner Product Catalog - 2025-2026

SPRAY GUNS: FRONT ENTRY

ST-1100 SPRAY GUN (light weight)
Perfect for cold water units in factories, plants or smaller hot water units.
ORDER # PRESSURE TEMP. FLOW RATE INLET OUTLET WEIGHT BOX QTY
201100510 3050 PSI 300° F 7 GPM 3/8" FPT 1/4" FPT .94 lb 50
Repair Kit: #201100401
• Ergonomically designed spray angle and easy to squeeze, even for
small hands.
• Stainless steel spring, needle, ball and seat.
• Forged brass housing for maximum strength.

ST-1500 SPRAY GUN (most popular gun)
Industry standard, the ST-1500 is well-suited for a
variety of industrial pressure washing applications.

ORDER # PRESSURE TEMP. FLOW RATE INLET OUTLET WEIGHT BOX QTY
201500910 5000 PSI 300° F 10.4 GPM 3/8" FPT 1/4" FPT 1.24 lb 50
Repair Kit: #201500496
• Designed to be “universally” comfortable, even for small hands.
• Forged brass housing for maximum strength.
• Unitized valve for easy repair.
• Stainless steel spring, needle, ball and seat. LFT
• Fully rebuild-able, convenient seven screw access to cartridge-type
valve assembly makes this gun easy to rebuild and a wise long-term
investment.
• LFT (Low Friction Trigger) this gun’s trigger system incorporates a ball
between the trigger and piston rod contact area that rolls when
triggered resulting in a much easier opening and holding.

ST-1500C SPRAY GUN (ceramic ball)

ORDER # PRESSURE TEMP. FLOW RATE INLET OUTLET WEIGHT BOX QTY
201500572 4000 PSI 302° F 12 GPM 3/8" FPT 1/4" FPT 1.24 lb 50
Repair Kit: #202000054
• Designed from the “industry standard” ST-1500
Spray Gun.
• Chemical Resistant.
• Stainless steel inlet and outlet.
• LFT (Low Friction Trigger) this gun’s trigger LFT
system incorporates a ball between the trigger Inner Valves:
and piston rod contact area that rolls when High quality materials for the
triggered resulting in a much easier opening best chemical resistance
and holding.
ST-1500H OPEN SPRAY GUN ST-1500

(manual start machines)
Ideal when unloader is unavailable or for manual start pressure washers
ORDER # TEMP. INLET OUTLET WEIGHT BOX QTY
201500751 300° F 3/8" FPT 1/4" FPT .82 lb 50
• Flow through design offers less downtime for repairs.
• Heavy duty molded handle.
• For lower pressure applications.
/
SUTTNER AMERICA COMPANY 13
