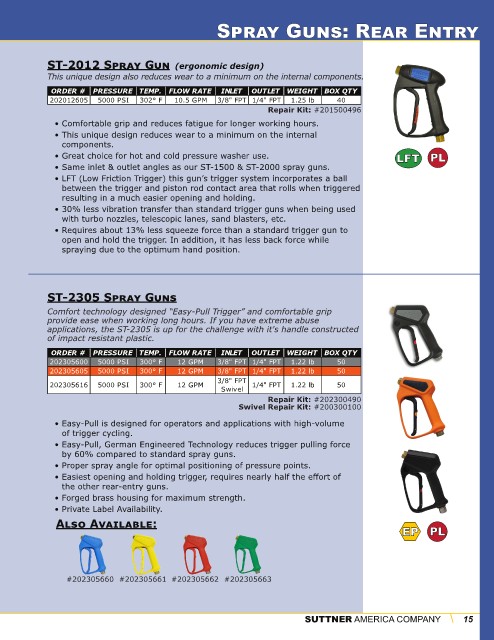

Page 15 - Suttner Product Catalog - 2025-2026

SPRAY GUNS: REAR ENTRY

ST-2012 SPRAY GUN (ergonomic design)

This unique design also reduces wear to a minimum on the internal components.
ORDER # PRESSURE TEMP. FLOW RATE INLET OUTLET WEIGHT BOX QTY
202012605 5000 PSI 302° F 10.5 GPM 3/8" FPT 1/4" FPT 1.25 lb 40
Repair Kit: #201500496
• Comfortable grip and reduces fatigue for longer working hours.
• This unique design reduces wear to a minimum on the internal
components.
• Great choice for hot and cold pressure washer use. LFT PL
• Same inlet & outlet angles as our ST-1500 & ST-2000 spray guns.
• LFT (Low Friction Trigger) this gun’s trigger system incorporates a ball
between the trigger and piston rod contact area that rolls when triggered
resulting in a much easier opening and holding.
• 30% less vibration transfer than standard trigger guns when being used
with turbo nozzles, telescopic lanes, sand blasters, etc.
• Requires about 13% less squeeze force than a standard trigger gun to
open and hold the trigger. In addition, it has less back force while
spraying due to the optimum hand position.

ST-2305 SPRAY GUNS
Comfort technology designed “Easy-Pull Trigger” and comfortable grip
provide ease when working long hours. If you have extreme abuse
applications, the ST-2305 is up for the challenge with it's handle constructed
of impact resistant plastic.
ORDER # PRESSURE TEMP. FLOW RATE INLET OUTLET WEIGHT BOX QTY
202305600 5000 PSI 300° F 12 GPM 3/8" FPT 1/4" FPT 1.22 lb 50
202305605 5000 PSI 300° F 12 GPM 3/8" FPT 1/4" FPT 1.22 lb 50
3/8" FPT
202305616 5000 PSI 300° F 12 GPM 1/4" FPT 1.22 lb 50
Swivel
Repair Kit: #202300490
Swivel Repair Kit: #200300100

• Easy-Pull is designed for operators and applications with high-volume
of trigger cycling.
• Easy-Pull, German Engineered Technology reduces trigger pulling force
by 60% compared to standard spray guns.
• Proper spray angle for optimal positioning of pressure points.
• Easiest opening and holding trigger, requires nearly half the effort of
the other rear-entry guns.
• Forged brass housing for maximum strength.
• Private Label Availability.
ALSO AVAILABLE:
EP PL

#202305660 #202305661 #202305662 #202305663

/
SUTTNER AMERICA COMPANY 15
