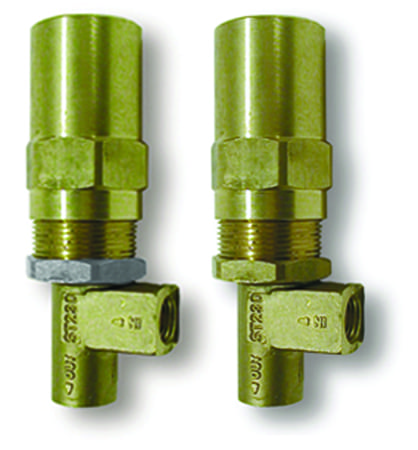

ST-230 Safety Relief Valve Parts Detail

Part # Pressure Temp. Flow Rate Inlet Outlet O-ring Material Wt. Description
200230501 500-3600 PSI 200° F 8 GPM 1/4" FPT 1/4" FPT EPDM   .84 lb
200230601 500-5070 PSI 200° F 8 GPM 1/4" FPT 1/4" FPT EPDM   .84 lb
200230520 500-2200 PSI 200° F 8 GPM 1/4" FPT 1/4" FPT EPDM   .84 lb

Applications

Ideal in-line regulator for multi-gun pumping units on self-serve car wash systems. Perfect for pressure washer/steam combination applications.

Features

• Adjustable pressure.
• Forged brass housing.
• Special seals for maximum heat and chemical resistance.
• Valve member rides on elastomeric cushion, eliminating metal to metal contact, a common cause of regulator failure.
• Can be rebuilt without removing from the installation.
  • Parts List
  • Repair Kit
  • Specs
  • Manual

FILE DOWNLOAD: 200230600-plist.pdf  ( View )
FILE DOWNLOAD: ETZ_EN_200230520_01_23.01.2019.pdf  ( View )
FILE DOWNLOAD: ETZ_EN_200230601.pdf  ( View )
FILE DOWNLOAD: ETZ_EN_200230501.pdf  ( View )

FILE DOWNLOAD: 2002305x00-rkit.pdf

FILE DOWNLOAD: 200230x00-spec sheet.pdf

FILE DOWNLOAD: 200230x00-manual.pdf
