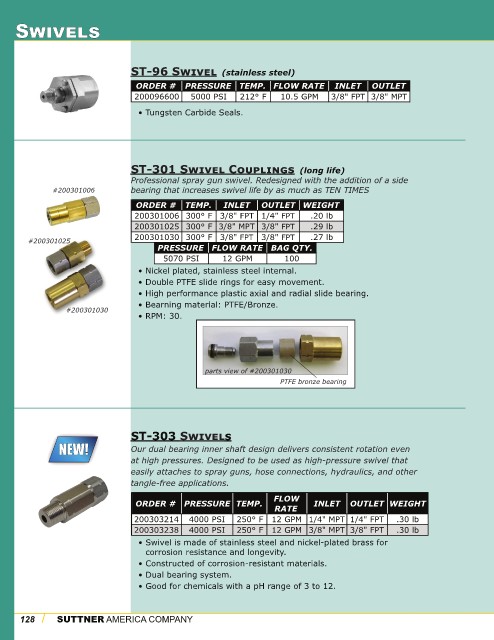

Page 128 - Suttner Product Catalog - 2023
P. 128
Connections: Swivels
NEW!
ST-96 SWIVEL (stainless steel)
ORDER # PRESSURE TEMP. FLOW RATE INLET OUTLET
200096600 5000 PSI 212° F 10.5 GPM 3/8" FPT 3/8" MPT
• Tungsten Carbide Seals
#200301006 ST-301 SWIVEL COUPLINGS (long life)
Professional spray gun swivel. Redesigned with the addition of a side
bearing that increases swivel life by as much as TEN TIMES
ORDER # TEMP. INLET OUTLET WEIGHT
200301006 300° F 3/8" FPT 1/4" FPT .20 lb
#200301025 200301025 300° F 3/8" MPT 3/8" FPT .29 lb
200301030 300° F 3/8" FPT 3/8" FPT .27 lb
PRESSURE FLOW RATE BAG QTY.
5070 PSI 12 GPM 100
• Nickel plated, stainless steel internal
• Double PTFE slide rings for easy movement
#200301030
• High performance plastic axial and radial slide bearing
• Bearning material: PTFE/Bronze
• RPM: 30
parts view of #200301030
PTFE bronze bearing
ST-310 SWIVEL COUPLINGS (stainless steel)
Perfect for hose connection to trigger guns, booms, etc.
Prevents hose from tangling or twisting.
FLOW BAG
ORDER # PRESSURE TEMP. INLET OUTLET WEIGHT
RATE QTY.
200310050 5000 PSI 300° F 12 GPM 3/8" MPT 3/8" FPT 100 .20 lb
• Extends the life of your hose
• Double PTFE slide rings for easy movement
• Axial and radial slide bearing
• Bearning material: PTFE
• RPM: 30
128 SUTTNER AMERICA COMPANY
