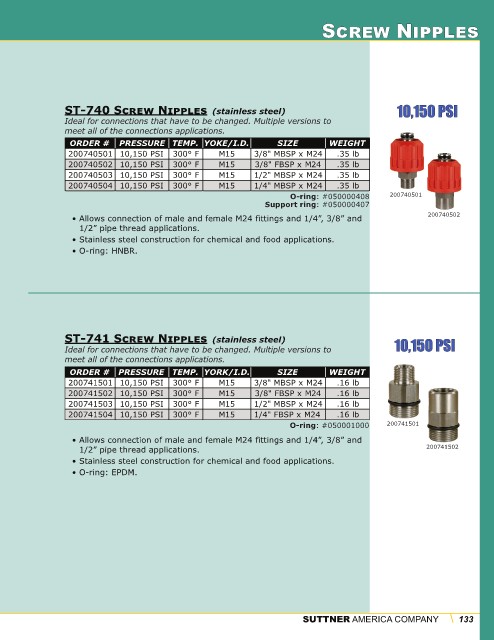

Page 133 - Suttner Product Catalog - 2025-2026
P. 133
SCREW NIPPLES
ST-740 SCREW NIPPLES (stainless steel) 10,150 PSI
Ideal for connections that have to be changed. Multiple versions to
meet all of the connections applications.
ORDER # PRESSURE TEMP. YOKE/I.D. SIZE WEIGHT
200740501 10,150 PSI 300° F M15 3/8" MBSP x M24 .35 lb
200740502 10,150 PSI 300° F M15 3/8" FBSP x M24 .35 lb
200740503 10,150 PSI 300° F M15 1/2" MBSP x M24 .35 lb
200740504 10,150 PSI 300° F M15 1/4" MBSP x M24 .35 lb
O-ring: #050000408 200740501
Support ring: #050000407
• Allows connection of male and female M24 fittings and 1/4”, 3/8” and 200740502
1/2” pipe thread applications.
• Stainless steel construction for chemical and food applications.
• O-ring: HNBR.
ST-741 SCREW NIPPLES (stainless steel) 10,150 PSI
Ideal for connections that have to be changed. Multiple versions to
meet all of the connections applications.
ORDER # PRESSURE TEMP. YORK/I.D. SIZE WEIGHT
200741501 10,150 PSI 300° F M15 3/8" MBSP x M24 .16 lb
200741502 10,150 PSI 300° F M15 3/8" FBSP x M24 .16 lb
200741503 10,150 PSI 300° F M15 1/2" MBSP x M24 .16 lb
200741504 10,150 PSI 300° F M15 1/4" FBSP x M24 .16 lb
O-ring: #050001000 200741501
• Allows connection of male and female M24 fittings and 1/4”, 3/8” and
1/2” pipe thread applications. 200741502
• Stainless steel construction for chemical and food applications.
• O-ring: EPDM.
/
SUTTNER AMERICA COMPANY 133
