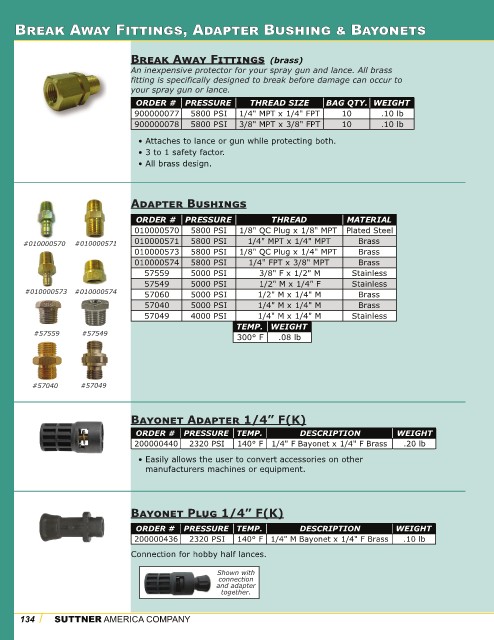

Page 134 - Suttner Product Catalog - 2023

Connections: Break Away Fittings, Adaptar Bushing & Bayonets

BREAK AWAY FITTINGS (brass)
An inexpensive protector for your spray gun and lance. All brass
fitting is specifically designed to break before damage can occur to
your spray gun or lance.

ORDER # PRESSURE THREAD SIZE BAG QTY. WEIGHT
900000077 5800 PSI 1/4" MPT x 1/4" FPT 10 .10 lb
900000078 5800 PSI 3/8" MPT x 3/8" FPT 10 .10 lb

• Attaches to lance or gun while protecting both
• 3 to 1 safety factor
• All brass design

ADAPTER BUSHINGS

ORDER # PRESSURE THREAD MATERIAL
010000570 5800 PSI 1/8" QC Plug x 1/8" MPT Plated Steel

#010000570 #010000571 010000571 5800 PSI 1/4" MPT x 1/4" MPT Brass
010000573 5800 PSI 1/8" QC Plug x 1/4" MPT Brass
010000574 5800 PSI 1/4" FPT x 3/8" MPT Brass
57559 5000 PSI 3/8" F x 1/2" M Stainless
57549 5000 PSI 1/2" M x 1/4" F Stainless
#010000573 #010000574 57060 5000 PSI 1/2" M x 1/4" M Brass
57040 5000 PSI 1/4" M x 1/4" M Brass
57049 4000 PSI 1/4" M x 1/4" M Stainless
TEMP. WEIGHT
#57559 #57549
300° F .08 lb

#57060 #57040 #57049

BAYONET ADAPTER 1/4” F (K)
ORDER # PRESSURE TEMP. DESCRIPTION WEIGHT
200000440 2320 PSI 140° F 1/4" F Bayonet x 1/4" F Brass .20 lb
• Easily allows the user to convert accessories on other
manufacturers machines or equipment

BAYONET PLUG 1/4” F (K)

ORDER # PRESSURE TEMP. DESCRIPTION WEIGHT
200000436 2320 PSI 140° F 1/4" M Bayonet x 1/4" F Brass .10 lb

• Connection for hobby half lances

shown with
connection
and adapter
together
