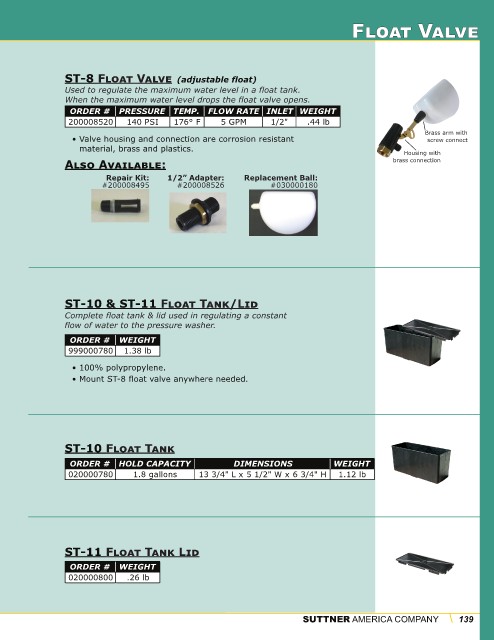

Page 139 - Suttner Product Catalog - 2023
P. 139
Pressure Washer Accessories: Float Valve
ST-8 FLOAT VALVE (adjustable float)
Used to regulate the maximum water level in a float tank.
When the maximum water level drops the float valve opens.
ORDER # PRESSURE TEMP. FLOW RATE INLET WEIGHT Brass arm with
200008520 140 PSI 176° F 5 GPM 1/2" .44 lb screw connect
Housing with
• Valve housing and connection are corrosion resistant material, brass connection
brass and plastics
ALSO AVAILABLE:
Repair Kit: 1/2” Adapter: Replacement Ball:
#200008495 #200008526 #030000180
ST-10 & ST-11 FLOAT TANK/LID
Complete float tank & lid used in regulating a constant
flow of water to the pressure washer
ORDER # WEIGHT
999000780 1.38 lb
• 100% polypropylene
• Mount ST-8 float valve anywhere needed
ST-10 FLOAT TANK
ORDER # HOLD CAPACITY DIMENSIONS WEIGHT
020000780 1.8 gallons 13 3/4" L x 5 1/2" W x 6 3/4" H 1.12 lb
ST-11 FLOAT TANK LID
ORDER # WEIGHT
020000800 .26 lb
SUTTNER AMERICA COMPANY 139
