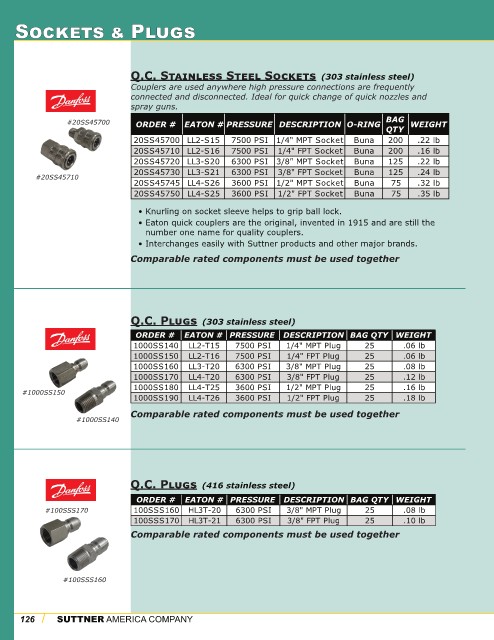

Page 126 - Suttner Product Catalog - 2023

Connections: Sockets & Plugs

Q.C. STAINLESS STEEL SOCKETS (303 stainless steel)
Couplers are used anywhere high pressure connections are frequently
connected and disconnected. Ideal for quick change of quick nozzles and
spray guns.

BAG
ORDER # EATON # PRESSURE DESCRIPTION O-RING WEIGHT
QTY
20SS45700 LL2-S15 7500 PSI 1/4" MPT Socket Buna 200 .22 lb
20SS45710 LL2-S16 7500 PSI 1/4" FPT Socket Buna 200 .16 lb
20SS45720 LL3-S20 6300 PSI 3/8" MPT Socket Buna 125 .22 lb
20SS45730 LL3-S21 6300 PSI 3/8" FPT Socket Buna 125 .24 lb
20SS45745 LL4-S26 3600 PSI 1/2" MPT Socket Buna 75 .32 lb
20SS45750 LL4-S25 3600 PSI 1/2" FPT Socket Buna 75 .35 lb

• Knurling on socket sleeve helps to grip ball lock
• Eaton quick couplers are the original, invented in 1915 and are still the
number one name for quality couplers
• Interchanges easily with Suttner products and other major brands
Comparable rated components must be used together

Q.C. PLUGS (303 stainless steel)
ORDER # EATON # PRESSURE DESCRIPTION BAG QTY WEIGHT
1000SS140 LL2-T15 7500 PSI 1/4" MPT Plug 25 .06 lb
1000SS150 LL2-T16 7500 PSI 1/4" FPT Plug 25 .06 lb
1000SS160 LL3-T20 6300 PSI 3/8" MPT Plug 25 .08 lb
1000SS170 LL4-T20 6300 PSI 3/8" FPT Plug 25 .12 lb
1000SS180 LL4-T25 3600 PSI 1/2" MPT Plug 25 .16 lb
1000SS190 LL4-T26 3600 PSI 1/2" FPT Plug 25 .18 lb
Comparable rated components must be used together

Q.C. PLUGS (416 stainless steel)

ORDER # EATON # PRESSURE DESCRIPTION BAG QTY WEIGHT
100SSS160 HL3T-20 6300 PSI 3/8" MPT Plug 25 .08 lb
100SSS170 HL3T-21 6300 PSI 3/8" FPT Plug 25 .10 lb
Comparable rated components must be used together
