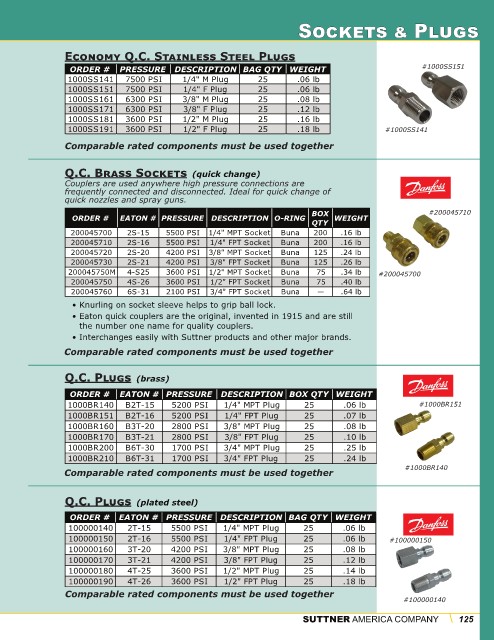

Page 125 - Suttner Product Catalog - 2023

Connections: Sockets & Plugs

ECONOMY Q.C. STAINLESS STEEL PLUGS
ORDER # PRESSURE DESCRIPTION BAG QTY WEIGHT
1000SS141 7500 PSI 1/4" M Plug 25 .06 lb
1000SS151 7500 PSI 1/4" F Plug 25 .06 lb
1000SS161 6300 PSI 3/8" M Plug 25 .08 lb
1000SS171 6300 PSI 3/8" F Plug 25 .12 lb
1000SS181 3600 PSI 1/2" M Plug 25 .16 lb
1000SS191 3600 PSI 1/2" F Plug 25 .18 lb

Comparable rated components must be used together

Q.C. BRASS SOCKETS (quick change)
Couplers are used anywhere high pressure connections are
frequently connected and disconnected. Ideal for quick change of
quick nozzles and spray guns.
BOX
ORDER # EATON # PRESSURE DESCRIPTION O-RING WEIGHT
QTY
200045700 2S-15 5500 PSI 1/4" MPT Socket Buna 200 .16 lb
200045710 2S-16 5500 PSI 1/4" FPT Socket Buna 200 .16 lb
200045720 2S-20 4200 PSI 3/8" MPT Socket Buna 125 .24 lb
200045730 2S-21 4200 PSI 3/8" FPT Socket Buna 125 .26 lb
200045750M 4-S25 3600 PSI 1/2" MPT Socket Buna 75 .34 lb
200045750 4S-26 3600 PSI 1/2" FPT Socket Buna 75 .40 lb
200045760 6S-31 2100 PSI 3/4" FPT Socket Buna — .64 lb

• Knurling on socket sleeve helps to grip ball lock
• Eaton quick couplers are the original, invented in 1915 and are still the
number one name for quality couplers
• Interchanges easily with Suttner products and other major brands
Comparable rated components must be used together

Q.C. PLUGS (brass)
ORDER # EATON # PRESSURE DESCRIPTION BOX QTY WEIGHT
1000BR140 B2T-15 5200 PSI 1/4" MPT Plug 25 .06 lb
1000BR150 B2T-16 5200 PSI 1/4" FPT Plug 25 .07 lb
1000BR160 B3T-20 2800 PSI 3/8" MPT Plug 25 .08 lb
1000BR170 B3T-21 2800 PSI 3/8" FPT Plug 25 .10 lb
1000BR200 B6T-30 1700 PSI 3/4" MPT Plug 25 .25 lb
1000BR210 B6T-31 1700 PSI 3/4" FPT Plug 25 .24 lb
Comparable rated components must be used together

Q.C. PLUGS (plated steel)

ORDER # EATON # PRESSURE DESCRIPTION BAG QTY WEIGHT
100000140 2T-15 5500 PSI 1/4" MPT Plug 25 .06 lb
100000150 2T-16 5500 PSI 1/4" FPT Plug 25 .06 lb
100000160 3T-20 4200 PSI 3/8" MPT Plug 25 .08 lb
100000170 3T-21 4200 PSI 3/8" FPT Plug 25 .12 lb
100000180 4T-25 3600 PSI 1/2" MPT Plug 25 .14 lb
100000190 4T-26 3600 PSI 1/2" FPT Plug 25 .18 lb
Comparable rated components must be used together

SUTTNER AMERICA COMPANY 125
