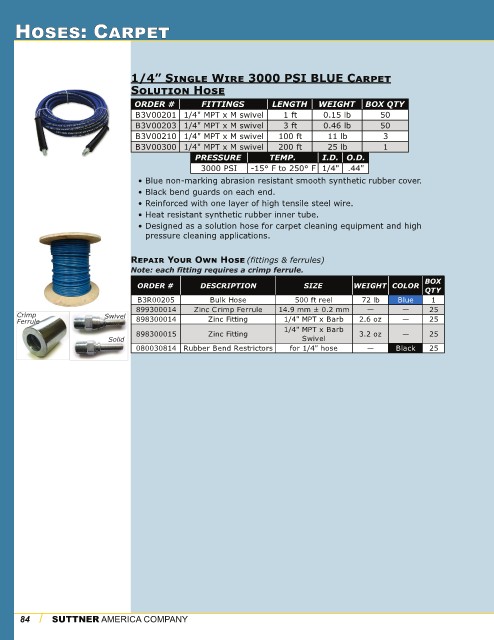

Page 84 - Suttner Product Catalog - 2023

Carpet Hoses

1/4” SINGLE WIRE 3000 PSI BLUE CARPET
SOLUTION HOSES

ORDER # FITTINGS LENGTH WEIGHT BOX QTY
B3V00201 1/4" MPT x M swivel 1 ft 0.15 lb 50
B3V00203 1/4" MPT x M swivel 3 ft 0.46 lb 50
B3V00204 1/4" MPT x M swivel 25 ft 2.8 lb 10
B3V00205 1/4" MPT x M swivel 50 ft 5.6 lb 6
B3V00210 1/4" MPT x M swivel 100 ft 11 lb 2
B3V00250 1/4" MPT x M swivel 150 ft 16.5 lb 1
B3V00300 1/4" MPT x M swivel 200 ft 22 lb 1
PRESSURE TEMP. I.D. O.D.
3000 PSI -15° F to 250° F 1/4" .44"

• Blue non-marking abrasion resistant smooth synthetic rubber cover
• Black bend guards on each end
• Reinforced with one layer of high tensile steel wire
• Heat resistant synthetic rubber inner tube
• Designed as a solution hose for carpet cleaning equipment
and high pressure cleaning applications

Crimp REPAIR YOUR OWN HOSE (fittings & ferrules)
Ferrule Note: each fitting requires a crimp ferrule

BOX
ORDER # DESCRIPTION SIZE WEIGHT COLOR
QTY
B3R00205 Bulk Hose 500 ft reel 70 lb Blue 1
899300014 Zinc Crimp Ferrule 12.8 mm - 13.0 mm — — 25
Swivel
898300014 Zinc Fitting 1/4" MPT x Barb 2.6 oz — 25
1/4" MPT x Barb
898300015 Zinc Fitting 3.2 oz — 25
Solid Swivel
080030814 Rubber Bend Restrictors for 1/4" hose — Black 25

84 SUTTNER AMERICA COMPANY
