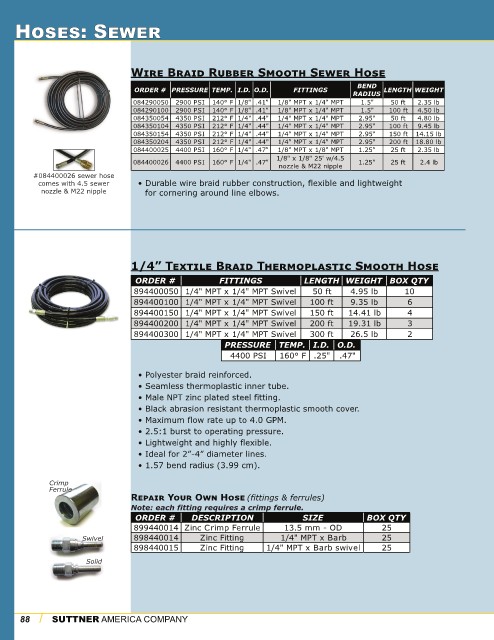

Page 88 - Suttner Product Catalog - 2023
P. 88

Sewer Hoses








                                 WIRE BRAID RUBBER SMOOTH SEWER HOSE

                                                                                         BEND
                                 ORDER # PRESSURE TEMP. I.D. O.D.        FITTINGS              LENGTH WEIGHT
                                                                                        RADIUS
                                 084290050  2900 PSI  140° F 1/8" .41"  1/8" MPT x 1/4" MPT  1.5"  50 ft  4.3 lb
                                 084290100  2900 PSI  140° F 1/8" .41"  1/8" MPT x 1/4" MPT  1.5"  100 ft  8.5 lb
                                 084350054  4350 PSI  212° F 1/4" .44"  1/4" MPT x 1/4" MPT  2.95"  50 ft  4.3 lb
                                 084350104  4350 PSI  212° F 1/4" .44"  1/4" MPT x 1/4" MPT  2.95"  100 ft  8.5 lb
                                 084350154  4350 PSI  212° F 1/4" .44"  1/4" MPT x 1/4" MPT  2.95"  150 ft  13 lb
                                 084350204  4350 PSI  212° F 1/4" .44"  1/4" MPT x 1/4" MPT  2.95"  200 ft  17.25 lb
                                 084400025  4400 PSI  160° F 1/4" .47"  1/8" MPT x 1/8" MPT  1.25"  25 ft  1.8 lb
                                                                     1/8" x 1/8" 25' w/4.5
                                 084400026  4400 PSI  160° F 1/4" .47"                   1.25"   25 ft  1.8 lb
                                                                     nozzle & M22 nipple
         #084400026 sewer hose
          comes with 4.5 sewer   • Durable wire braid rubber construction, flexible and lightweight for
           nozzle & M22 nipple     cornering around line elbows





                                 1/4” TEXTILE BRAID THERMOPLASTIC
                                 SMOOTH HOSE

                                  ORDER #              FITTINGS             LENGTH WEIGHT BOX QTY
                                 894400050 1/4" MPT x 1/4" MPT Swivel         50 ft    6.75 lb      10
                                 894400075 1/4" MPT x 1/4" MPT Swivel         75 ft    9.25 lb       5
                                 894400100 1/4" MPT x 1/4" MPT Swivel        100 ft    12.5 lb       6
                                 894400150 1/4" MPT x 1/4" MPT Swivel        150 ft    18.25 lb      4
                                 894400200 1/4" MPT x 1/4" MPT Swivel        200 ft     24 lb        3
                                 894400300 1/4" MPT x 1/4" MPT Swivel        300 ft    35.5 lb       2
                                                          PRESSURE     TEMP.    I.D.
                                                           4400 PSI    160° F .25"

                                 • Polyester braid reinforced
                                 • Seamless thermoplastic inner tube
                                 • Male NPT zinc plated steel fitting
                                 • Black abrasion resistant thermoplastic smooth cover
                                 • Maximum flow rate up to 4.0 GPM
                                 • 2.5:1 burst to operating pressure
                                 • Lightweight and highly flexible
                                 • Ideal for 2”-4” diameter lines
                                 • 1.57 bend radius (3.99 cm)

             Crimp
             Ferrule
                                 REPAIR YOUR OWN HOSE (fittings & ferrules)
                                 Note: each fitting requires a crimp ferrule
                                  ORDER #       DESCRIPTION                SIZE            BOX QTY
                                 899440014 Zinc Crimp Ferrule          13.5 mm - OD            25
                     Swivel      898440014        Zinc Fitting        1/4" MPT x Barb          25
                                 898440015        Zinc Fitting    1/4" MPT x Barb swivel       25
                      Solid






     88       SUTTNER AMERICA COMPANY
