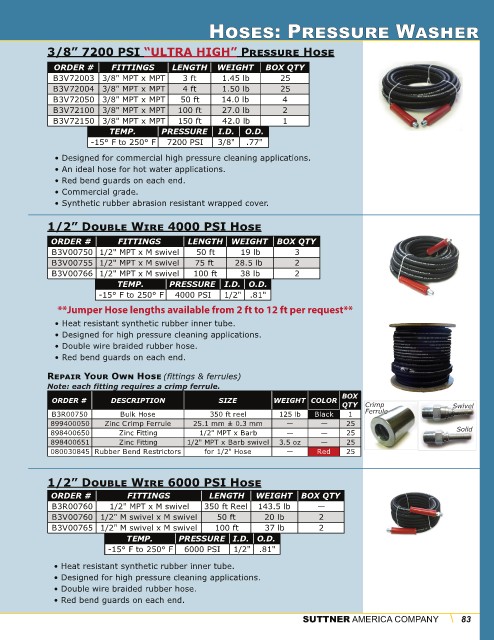

Page 83 - Suttner Product Catalog - 2023

Pressure Washer Hoses

3/8” DOUBLE WIRE 6000 PSI “JUMPER” HOSES 3/8” 7200 PSI “ULTRA HIGH” PRESSURE HOSE
ORDER # FITTINGS LENGTH WEIGHT BOX QTY
B3V72003 3/8" MPT x MPT 3 ft 1.40 lb 25
B3V72004 3/8" MPT x MPT 4 ft 1.75 lb 25
B3V72050 3/8" MPT x MPT 50 ft 16.25 lb 4
B3V72100 3/8" MPT x MPT 100 ft 31.5 lb 2
B3V72150 3/8" MPT x MPT 150 ft 46.75 lb 1
TEMP. PRESSURE I.D. O.D.
-15° F to 250° F 7200 PSI 3/8" .77"
• Designed for commercial high pressure cleaning applications
• An ideal hose for hot water applications
• Red bend guards on each end
• Commercial grade
• Synthetic rubber abrasion resistant wrapped cover

1/2” DOUBLE WIRE 4000 PSI HOSE

ORDER # FITTINGS LENGTH WEIGHT BOX QTY
B3V00750 1/2" MPT x M swivel 50 ft 19.15 lb 3
B3V00755 1/2" MPT x M swivel 75 ft 27.75 lb 2
B3V00766 1/2" MPT x M swivel 100 ft 37.3 lb 2
TEMP. PRESSURE I.D. O.D.
-15° F to 250° F 4000 PSI 1/2" .81"
**Jumper Hose lengths available from 2 ft to 12 ft per request**

• Heat resistant synthetic rubber inner tube
• Designed for high pressure cleaning applications
• Double wire braided rubber hose
• Red bend guards on each end Crimp
Ferrule
REPAIR YOUR OWN HOSE (fittings & ferrules)
Note: each fitting requires a crimp ferrule
BOX
ORDER # DESCRIPTION SIZE WEIGHT COLOR
QTY
B3R00750 Bulk Hose 350 ft reel 125 lb Black 1 Swivel
899400050 Zinc Crimp Ferrule 25.1 mm ± 0.3 mm — — 25
898400650 Zinc Fitting 1/2" MPT x Barb — — 25 Solid
898400651 Zinc Fitting 1/2" MPT x Barb swivel 3.5 oz — 25
080030845 Rubber Bend Restrictors for 1/2" Hose — Red 25

1/2” DOUBLE WIRE 6000 PSI HOSE
ORDER # FITTINGS LENGTH WEIGHT BOX QTY
B3R00760 1/2" MPT x M swivel 350 ft Reel 150 lb —
B3V00760 1/2" M swivel x M swivel 50 ft 23.5 lb 3
B3V00765 1/2" M swivel x M swivel 100 ft 45 lb 2
TEMP. PRESSURE I.D. O.D.
-15° F to 250° F 6000 PSI 1/2" .81"

• Heat resistant synthetic rubber inner tube
• Designed for high pressure cleaning applications
• Double wire braided rubber hose
• Red bend guards on each end
SUTTNER AMERICA COMPANY 83
