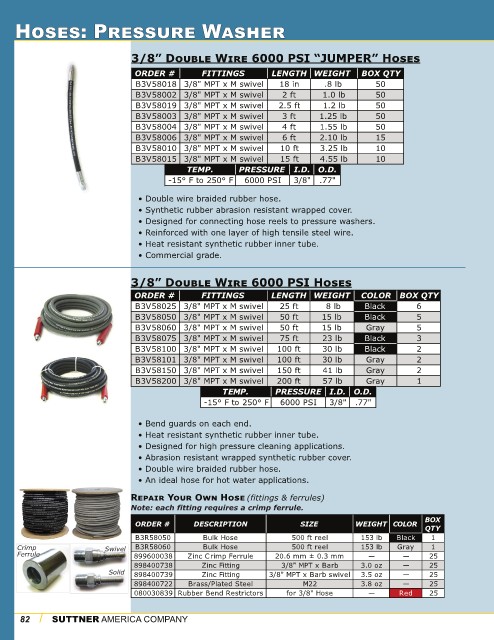

Page 82 - Suttner Product Catalog - 2023

Pressure Washer Hoses

3/8” DOUBLE WIRE 6000 PSI “JUMPER” HOSES

ORDER # FITTINGS LENGTH WEIGHT BOX QTY
B3V58018 3/8" MPT x M swivel 18 in .5 lb 50
B3V58002 3/8" MPT x M swivel 2 ft .6 lb 50
B3V58019 3/8" MPT x M swivel 2.5 ft .75 lb 50
B3V58003 3/8" MPT x M swivel 3 ft .9 lb 50
B3V58004 3/8" MPT x M swivel 4 ft 1.2 lb 25
B3V58006 3/8" MPT x M swivel 6 ft 1.8 lb 15
B3V58010 3/8" MPT x M swivel 10 ft 3 lb 10
B3V58015 3/8" MPT x M swivel 15 ft 4.45 lb 10
TEMP. PRESSURE I.D. O.D.
-15° F to 250° F 6000 PSI 3/8" .77"

• Double wire braided rubber hose
• Synthetic rubber abrasion resistant wrapped cover
• Designed for connecting hose reels to pressure washers
• Reinforced with one layer of high tensile steel wire
• Heat resistant synthetic rubber inner tube
• Commercial grade

3/8” DOUBLE WIRE 6000 PSI HOSES
ORDER # FITTINGS LENGTH WEIGHT COLOR BOX QTY
B3V58025 3/8" MPT x M swivel 25 ft 7.6 lb Black 6
B3V58050 3/8" MPT x M swivel 50 ft 15.25 lb Black 5
B3V58060 3/8" MPT x M swivel 50 ft 15.25 lb Gray 5
B3V58075 3/8" MPT x M swivel 75 ft 22.8 lb Black 3
B3V58100 3/8" MPT x M swivel 100 ft 30.5 lb Black 2
B3V58101 3/8" MPT x M swivel 100 ft 30.5 lb Gray 2
B3V58150 3/8" MPT x M swivel 150 ft 45.75 lb Gray 1
B3V58200 3/8" MPT x M swivel 200 ft 61 lb Gray 1
TEMP. PRESSURE I.D. O.D.
-15° F to 250° F 6000 PSI 3/8" .77"

• Bend guards on each end
• Heat resistant synthetic rubber inner tube
• Designed for high pressure cleaning applications
• Abrasion resistant wrapped synthetic rubber cover
• Double wire braided rubber hose
• An ideal hose for hot water applications

Crimp REPAIR YOUR OWN HOSE (fittings & ferrules)
Ferrule Note: each fitting requires a crimp ferrule
BOX
ORDER # DESCRIPTION SIZE WEIGHT COLOR
QTY
B3R58050 Bulk Hose 500 ft reel 155 lb Black 1
B3R58060 Bulk Hose 500 ft reel 155 lb Gray 1
Swivel 899600038 Zinc Crimp Ferrule 20.6 mm ± 0.3 mm — — 25
898400738 Zinc Fitting 3/8" MPT x Barb 3.0 oz — 25
Solid 898400739 Zinc Fitting 3/8" MPT x Barb swivel 3.5 oz — 25
898400722 Brass/Plated Steel M22 3.8 oz — 25
080030839 Rubber Bend Restrictors for 3/8" Hose — Red 25

82 SUTTNER AMERICA COMPANY
