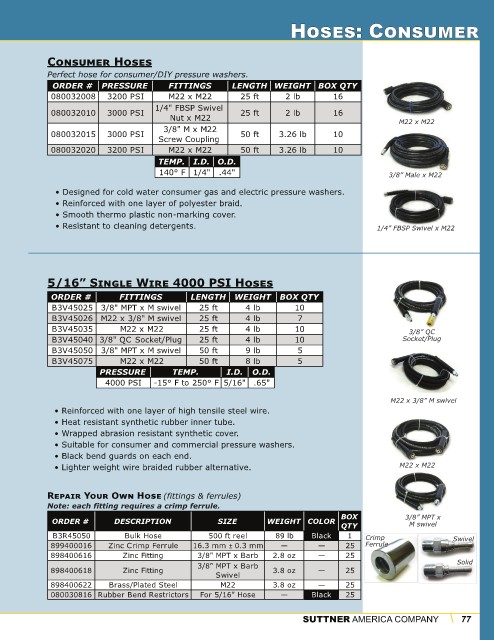

Page 77 - Suttner Product Catalog - 2023

Consumer Hoses

CONSUMER HOSES
Perfect hose for consumer/DIY pressure washers
ORDER # PRESSURE FITTINGS LENGTH WEIGHT BOX QTY
080032008 3200 PSI M22 x M22 25 ft 1.64 lb 16
1/4" FBSP Swivel M22 x M22
080032010 3000 PSI 25 ft 1.64 lb 16
Nut x M22
3/8" M x M22
080032015 3000 PSI 50 ft 3.28 lb 10
Screw Coupling
080032020 3200 PSI M22 x M22 50 ft 3.28 lb 10
TEMP. I.D. O.D.
140° F 1/4" .44" 3/8” Male x M22
• Designed for cold water consumer gas and electric pressure washers
• Reinforced with one layer of polyester braid
• Smooth thermo plastic non-marking cover
• Resistant to cleaning detergents 1/4” FBSP Swivel x M22

5/16” SINGLE WIRE 4000 PSI HOSES

ORDER # FITTINGS LENGTH WEIGHT BOX QTY
B3V45025 3/8" MPT x M swivel 25 ft 4.3 lb 10
B3V45026 M22 x 3/8” M swivel 25 ft 5 lb 7
B3V45035 M22 x M22 25 ft 4.3 lb 10
3/8” QC
B3V45040 3/8" QC Socket/Plug 25 ft 5 lb 10 Socket/Plug M22 x 3/8” M swivel
B3V45050 3/8" MPT x M swivel 50 ft 8.5 lb 5
B3V45055 M22 x M22 swivel 50 ft 9 lb 5
B3V45075 M22 x M22 50 ft 8.5 lb 5
PRESSURE TEMP. I.D. O.D.
4000 PSI -15° F to 250° F 5/16" .65" M22 x M22 3/8” MPT x
M swivel
• Reinforced with one layer of high tensile steel wire
• Heat resistant synthetic rubber inner tube
• Wrapped abrasion resistant synthetic cover
• Suitable for consumer and commercial pressure washers
• Black bend guards on each end
• Lighter weight wire braided rubber alternative

REPAIR YOUR OWN HOSE (fittings & ferrules) Crimp
Note: each fitting requires a crimp ferrule Ferrule
BOX
ORDER # DESCRIPTION SIZE WEIGHT COLOR
QTY
B3R45050 Bulk Hose 500 ft reel 90 lb Black 1
899400016 Zinc Crimp Ferrule 16.3 mm ± 0.3 mm — — 25
898400616 Zinc Fitting 3/8" MPT x Barb 2.8 oz — 25 Swivel
3/8" MPT x Barb
898400618 Zinc Fitting 3.8 oz — 25
Swivel
898400622 Brass/Plated Steel M22 3.8 oz — 25 Solid
080030816 Rubber Bend Restrictors For 5/16" Hose — Black 25

SUTTNER AMERICA COMPANY 77
