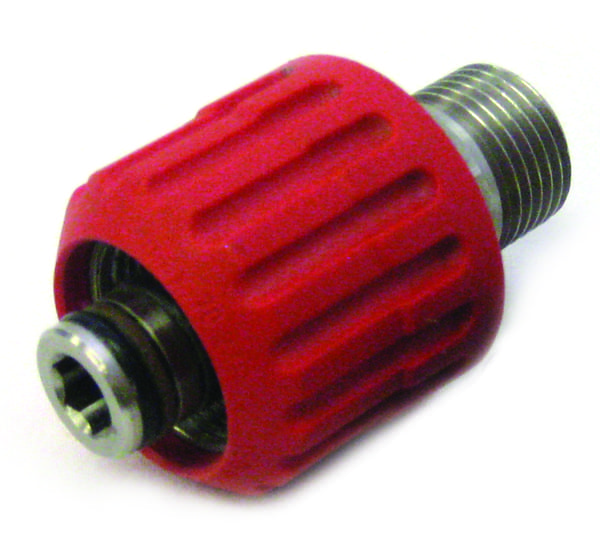

ST-740 Stainless Steel Screw Coupling
Part # |
200740502 |
Pressure |
10,000 PSI |
O_ring |
HNBR |
Temperature |
300° F |
Yoke ID |
M15 |
Inlet |
3/8" FPT |
Outlet |
M24 |
Weight |
.35 lb |
ST-740 Stainless Steel Screw Coupling Parts Detail
Part # |
Hansen # |
Pressure |
Description |
Material |
O_ring |
Temp. |
Flow Rate |
RPM |
Yoke ID |
Inlet |
Outlet |
Wt. |
Qty. |
200740501 |
|
10,000 PSI |
|
|
HNBR |
300° F |
|
|
M15 |
3/8" MPT |
M24 |
.35 lb |
|
200740502 |
|
10,000 PSI |
|
|
HNBR |
300° F |
|
|
M15 |
3/8" FPT |
M24 |
.35 lb |
|
200740504 |
|
10,000 PSI |
|
|
HNBR |
300° F |
|
|
M15 |
1/4" MPT |
M24 |
.35 lb |
|
Applications
10,000 PSI screw couplers, ideal for connections that have to be changed. Multiple versions to meet all of the connections applications.
Features
• Stainless steel construction for chemical & food applications.
• Allows connection of male and female M24 fittings and 3/8" & 1/4" pipe thread applications.
