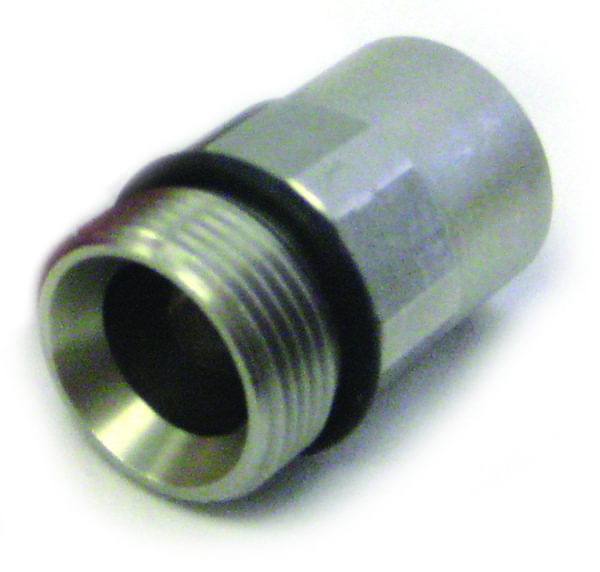

ST-741 Stainless Steel Screw Nipple

Part # 200741502
Pressure 10,150 PSI
O_ring EPDM
Temperature 300° F
Yoke ID M15
Inlet 3/8" FPT
Outlet M24
Weight .16 lb

ST-741 Stainless Steel Screw Nipple Parts Detail

Part # Hansen # Pressure Description Material O_ring Temp. Flow Rate RPM Yoke ID Inlet Outlet Wt. Qty.
200741501   10,150 PSI     EPDM 300° F     M15 3/8" MPT M24 .16 lb
200741502   10,150 PSI     EPDM 300° F     M15 3/8" FPT M24 .16 lb
200741504   10,150 PSI     EPDM 300° F     M15 1/4" MPT M24 .16 lb

Applications

10,150 PSI screw nipples, ideal for connections that have to be changed. Multiple versions to meet all of the connections applications.

Features

• Stainless steel construction for chemical & food applications.
• Allows connection of male and female M24 fittings and 3/8" & 1/4" pipe thread applications.
  • Parts List
  • Specs

FILE DOWNLOAD: 200741501.pdf

FILE DOWNLOAD: 2007415xx-spec sheet.pdf
