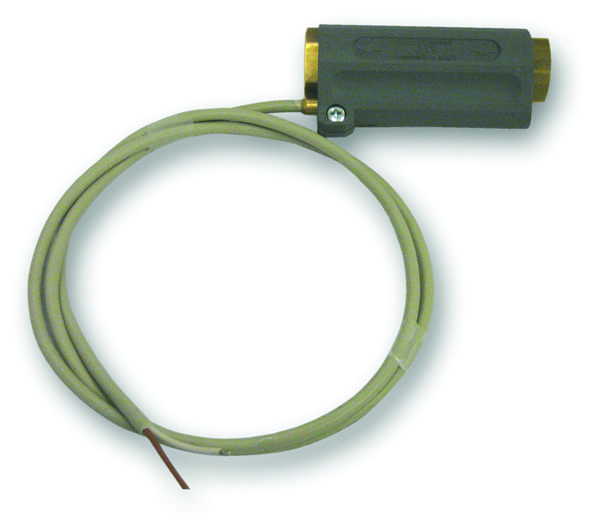

ST-5 Flow Switch (5075 PSI)

Part # 200005600
Pressure 75 PSI - 5075 PSI
Temperature 176° F
Flow Rate 1.0 GPM - 7.8 GPM
Inlet 3/8" FPT
Outlet 3/8" FPT
Weight .98 lb

Applications

Mounts in any position with a free floating magnet configuration.

Features

• Mounts further downstream in pumping system than traditional vacuum switches, thereby minimizing potential leak points that can cause vacuum switches to close.
• Easy brass reed switch replacement.
• 47 inch cord length
• Can be mounted horizontal or vertical.
  • Parts List
  • Repair Kit
  • Specs
  • Manual

FILE DOWNLOAD: 200005600-plist.pdf

FILE DOWNLOAD: 200005431-rkit.pdf  ( View )
FILE DOWNLOAD: 200005519-rkit.pdf  ( View )

FILE DOWNLOAD: ST5 Flow Switch-spec sheet.pdf

FILE DOWNLOAD: ST5 & ST6-manual.pdf
