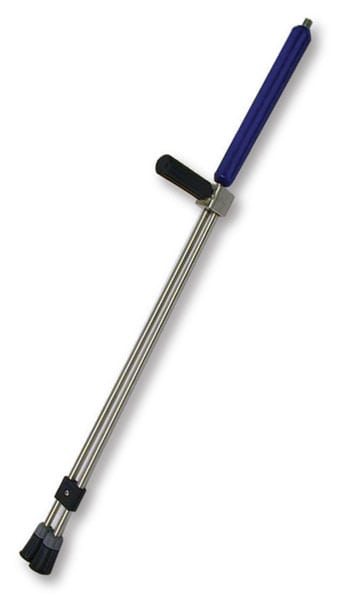

ST-154 Dual Lance Parts Detail


Part # Pressure Temp Length Inlet Outlet Nozzle Wt. Material Orifice Desc. Qty.
200154500 7300 PSI 300°F 38 1/4" MPT 1/4" F x 1/4" Soap 65° x 30.0 2.62 lb Stainless Steel
200154550 7300 PSI 300°F 51 1/4" MPT 1/4" F x 1/4" Soap 65° x 30.0 3.46 lb Stainless Steel

Applications

For use when extreme high and low pressures are needed. For example, spraying cleaning agents with low pressure through an injector valve and then cleaning with high pressure or switching to chemicals during high pressure cleaning.

Features

• Threads are rolled on providing consistent sealing and four times the strength than cut threads.
• High or low pressure operation is controlled by twisting the side handle.
• Lance is equipped with a 65° x 30.0 brass soap nozzle.
• Side handle helps manage the lance with ease for longer working periods.
• Stainless steel
• High PSI
  • Parts List
  • Repair Kit
  • Specs
  • Video

FILE DOWNLOAD: 200154500-plist.pdf

FILE DOWNLOAD: 2001545xx-rkit.pdf  ( View )

FILE DOWNLOAD: 200154500-spec sheet.pdf
