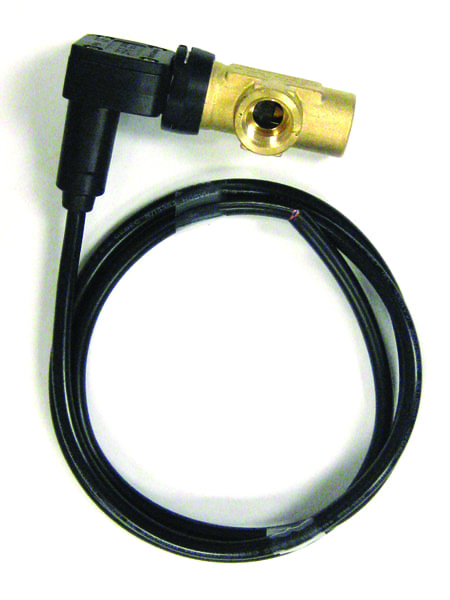

ST-7 Flow Switch
| Part # | 200007510 |
| Pressure | 5000 PSI |
| Temperature | 176° F |
| Flow Rate | 12 GPM |
| Inlet | 3/8" FNPT |
| Outlet | 3/8" FNPT |
| Weight | .80 lb |
| Volts/Amps | 10.1 Amps/250 VAC |
| Description | Switch point: 0.3 GPM |
ST-7 Flow Switch Parts Detail
| Part # | Pressure | Temp. | Flow Rate | Inlet | Outlet | Wt. | VA | Desc. |
| 200007500 | 5000 PSI | 176° F | 12 GPM | 3/8" FPT | 3/8" FPT | .80 lb | 10.1 Amps/250 VAC | Switch point: 1.2 GPM |
| 200007510 | 5000 PSI | 176° F | 12 GPM | 3/8" FNPT | 3/8" FNPT | .80 lb | 10.1 Amps/250 VAC | Switch point: 0.3 GPM |
| 2000075xx | 75-7200 PSI | 176° F | 12 GPM | 3/8" FPT | 3/8" FPT | 2.55 lb |
Applications
Mounts in any position and spring assisted brass magnet configuration.
Features
• With micro-switch instead of reed switch • Easy to install • Resistant against shock and vibration • IP 65 rated-water and dust proof • 47" wire
-
Manual
ST-7 Flow Switch Manual for 200007500.pdf
